Electric Belt Loader

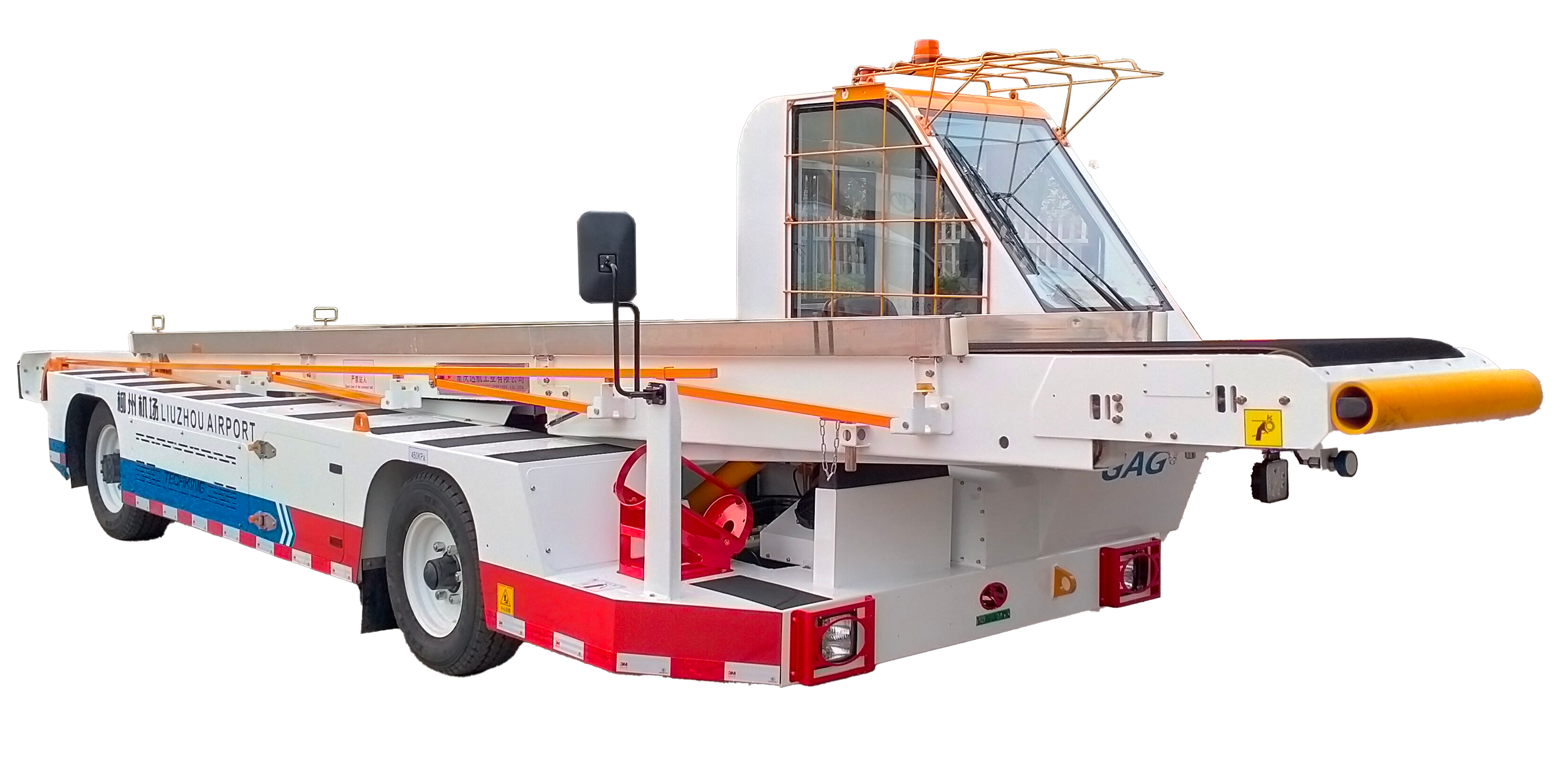

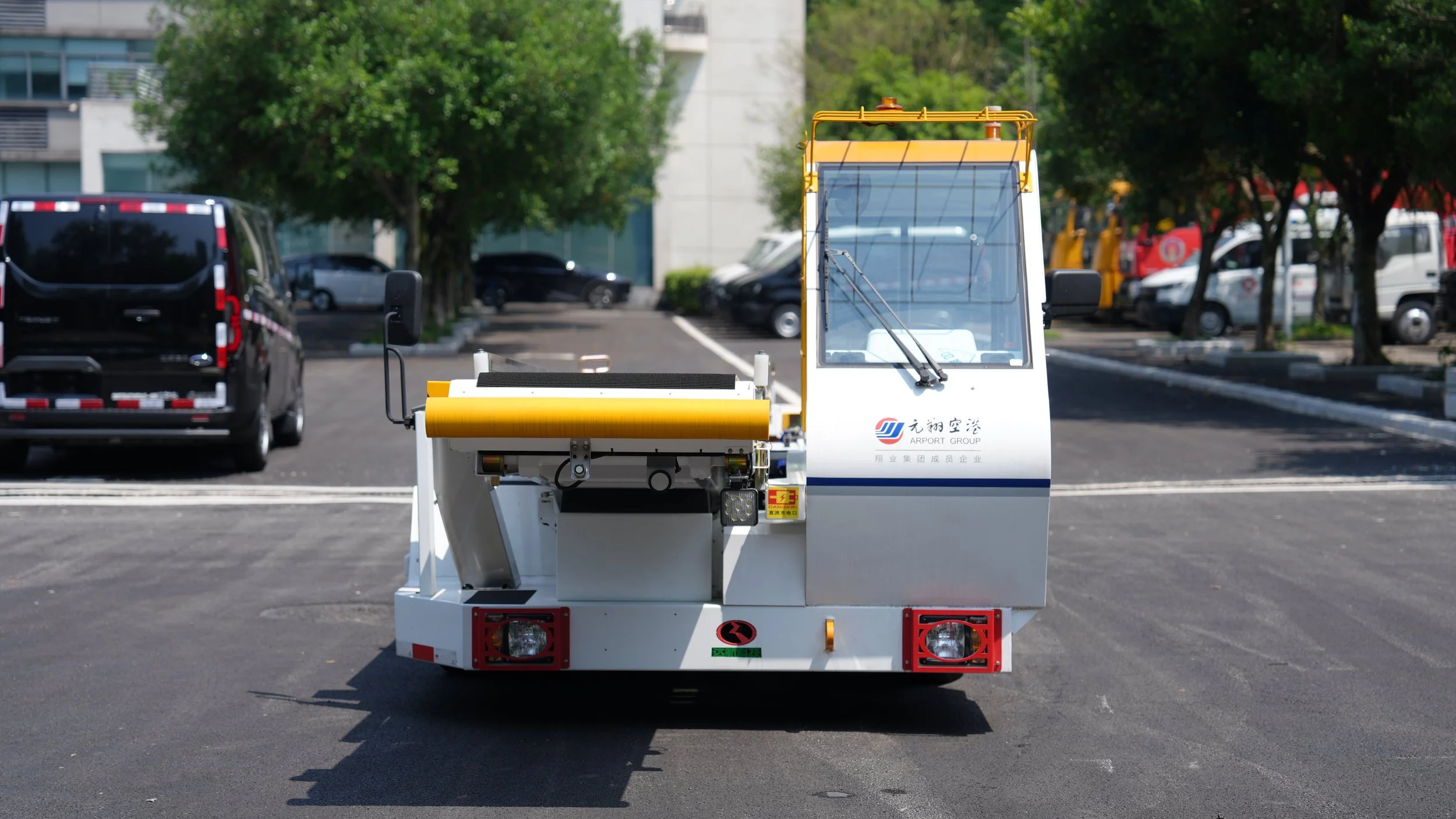

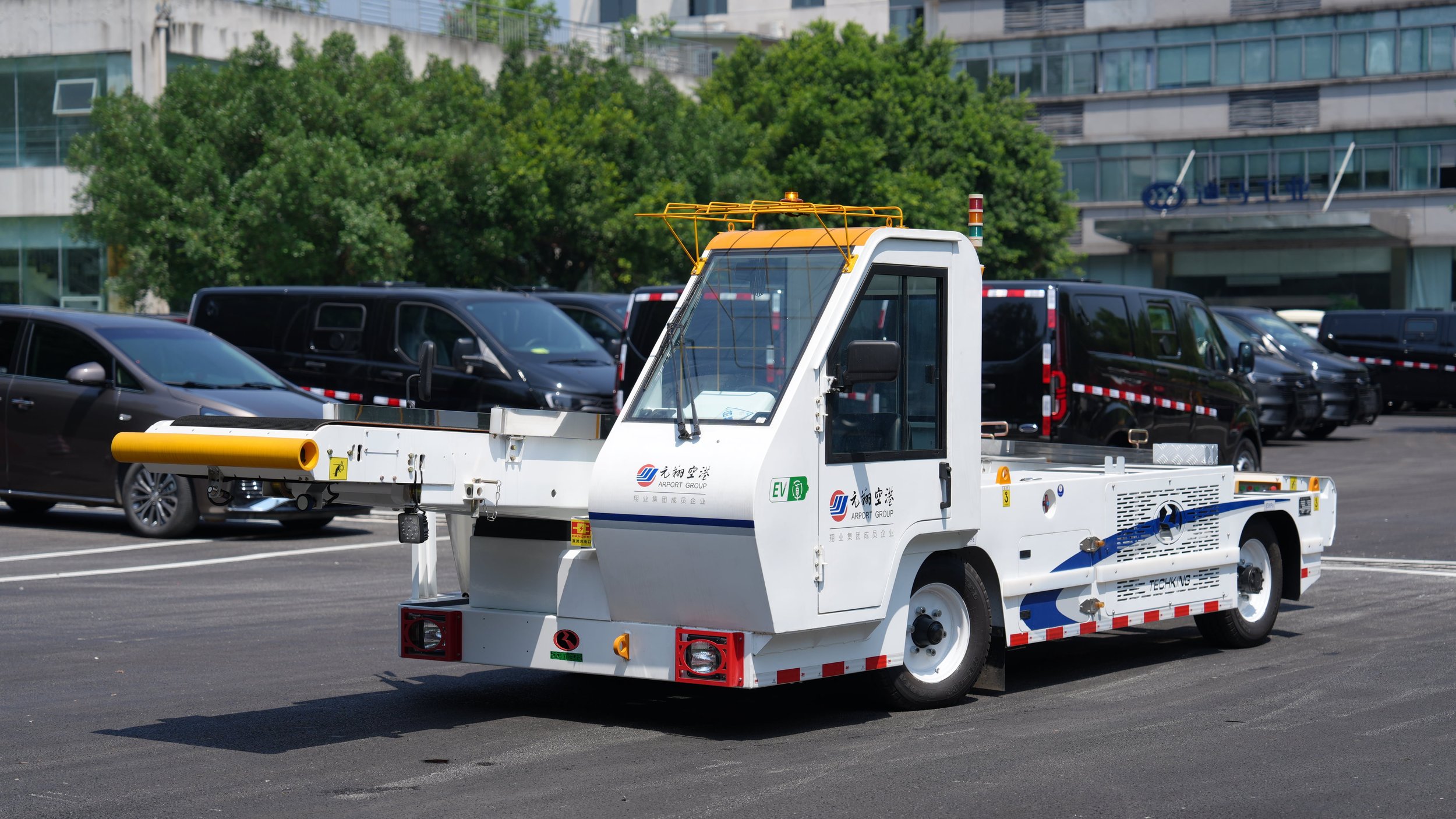

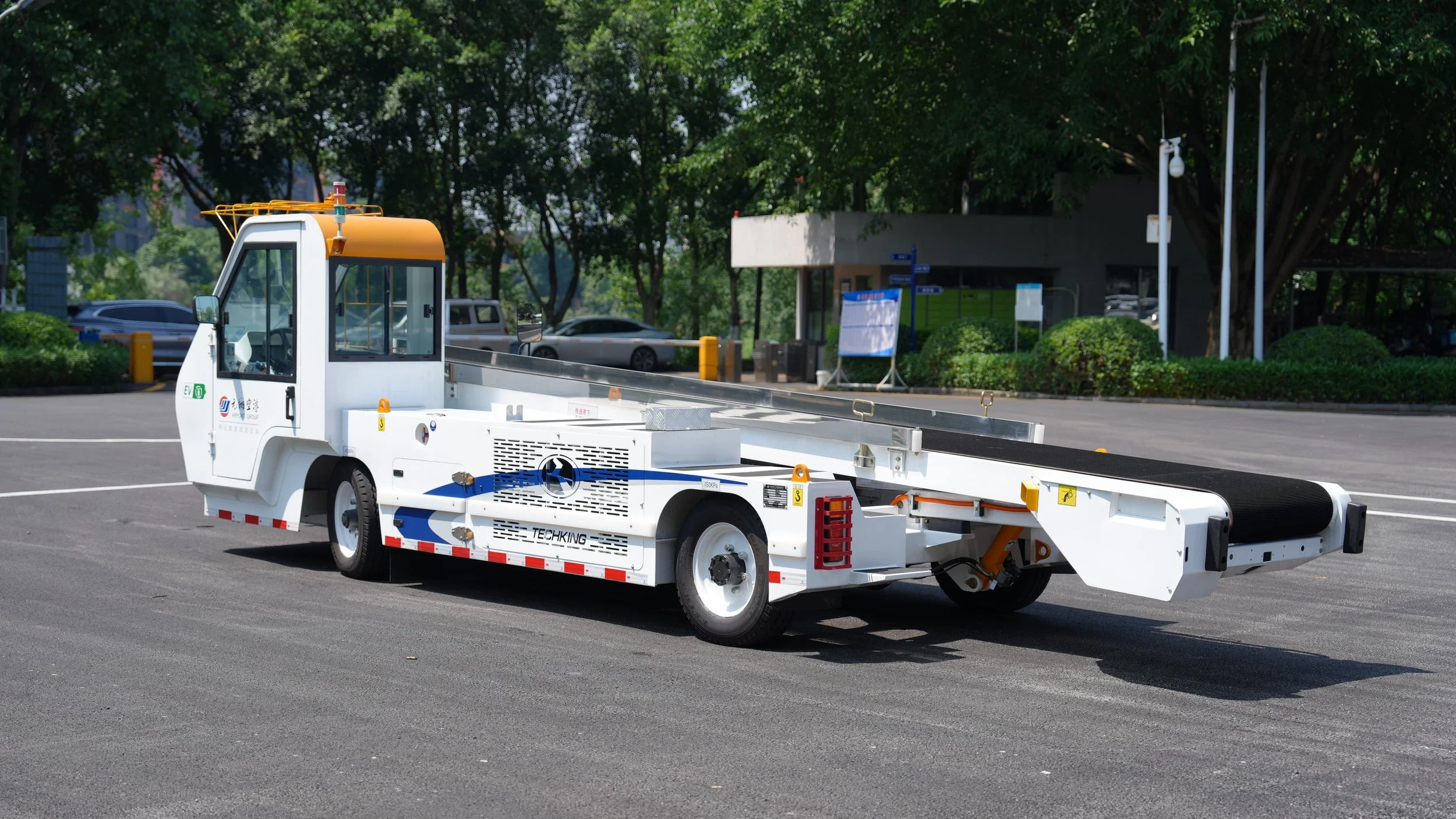

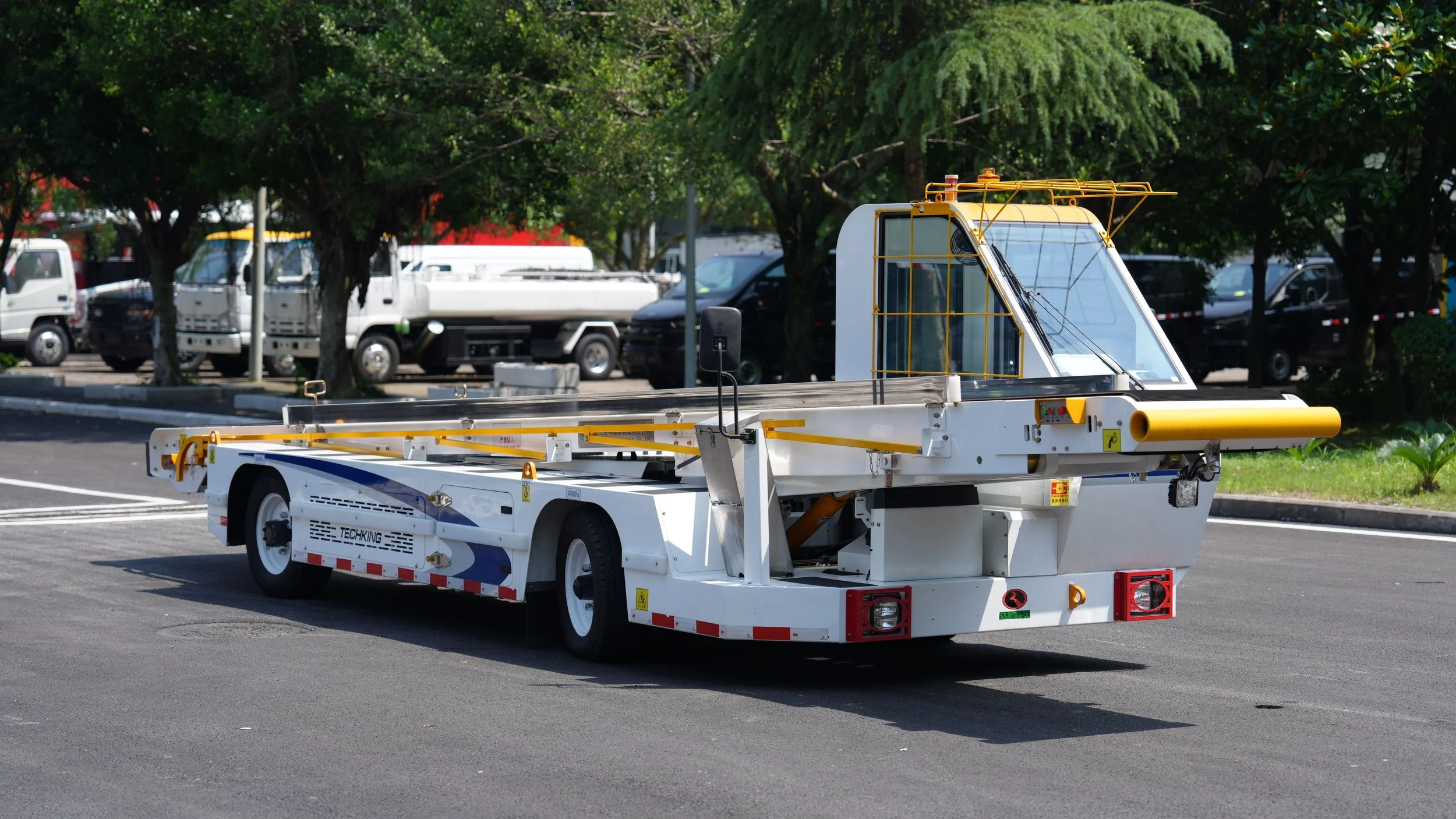

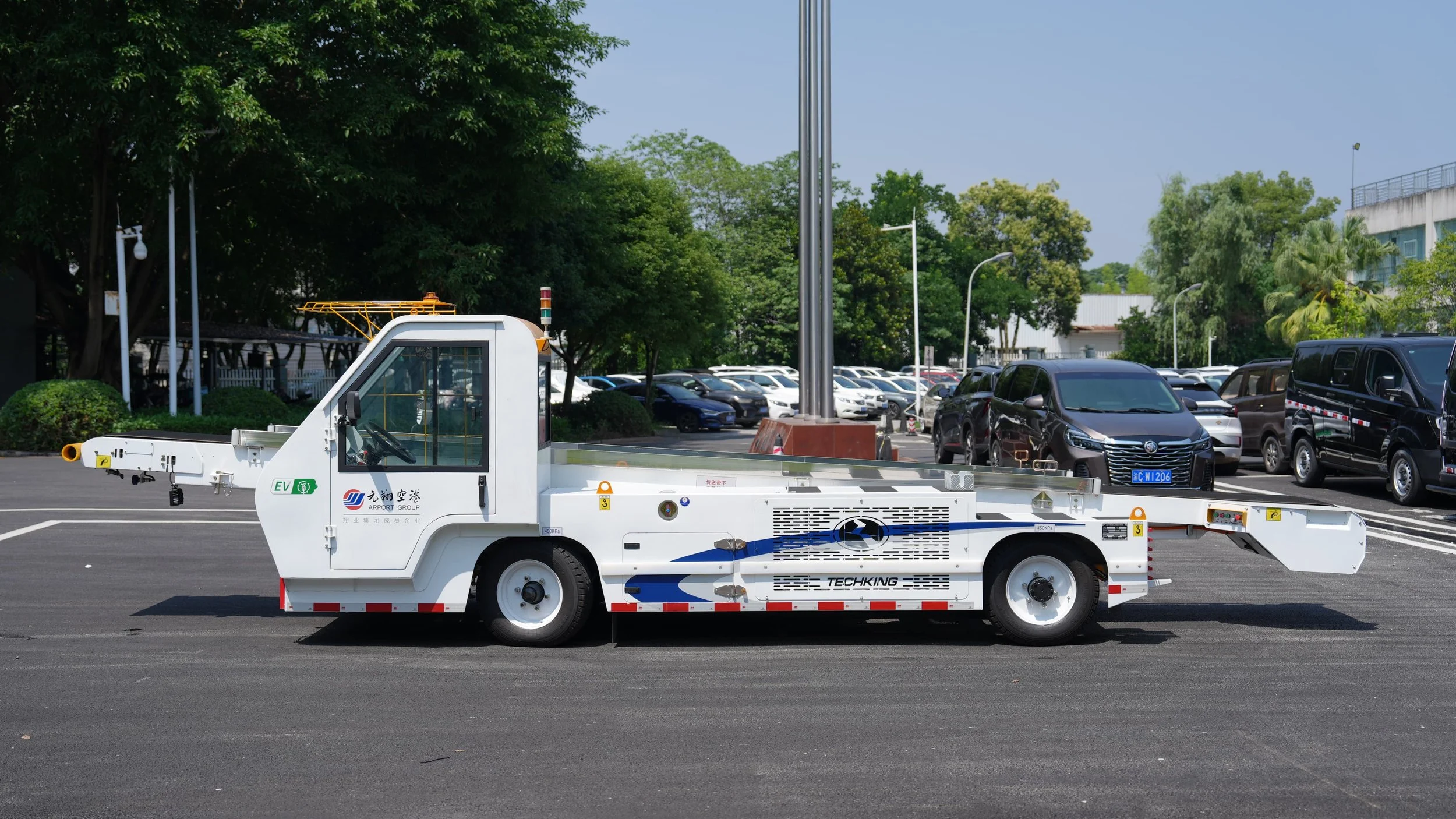

The TK-EXC80 is a fully electric aircraft belt loader engineered to provide safe, reliable and efficient baggage and bulk cargo handling for commercial aircraft.

A CATL LFP battery system, liquid-cooled electric powertrain and motor-driven conveyor ensure stable low-speed control, zero emissions and strong endurance. An intelligent CAN bus control architecture, digital display and standard TK-ASD aircraft docking safety system support efficient operation and enhanced safety during aircraft approach and loading.


    Specifications
      Power Type
      Battery Electric

      Belt Width
      700 mm

      Front Lift Range
      1,180–4,250 mm

      Rear Lift Range
      390–1,450 mm

      Drive Motor Rated Power
      80 kW @ 4,500 rpm

      Battery Type
      CATL LFP (82.43 kWh)

      Maximum Belt Inclination
      28.6°

      Belt Speed
      0.16–0.50 m/s

      Maximum Vehicle Speed
      30 km/h

      Belt Load Capacity
      135 kg/m

      Maximum Single Load
      400 kg

      Dimensions (L × W × H)
      8,180 × 2,170 × 2,150 mm

      Curb Weight
      3,900 kg

Features

TK-ASD Safe Aircraft Docking
The standard TK-ASD system monitors aircraft proximity and automatically stops the loader approximately 0.10–0.15 m before contact.

All-Day Endurance
Single-charge range exceeds 394 km with continuous operation capability over 24 hours, suitable for high-intensity airport operations.

Efficient Belt Handling

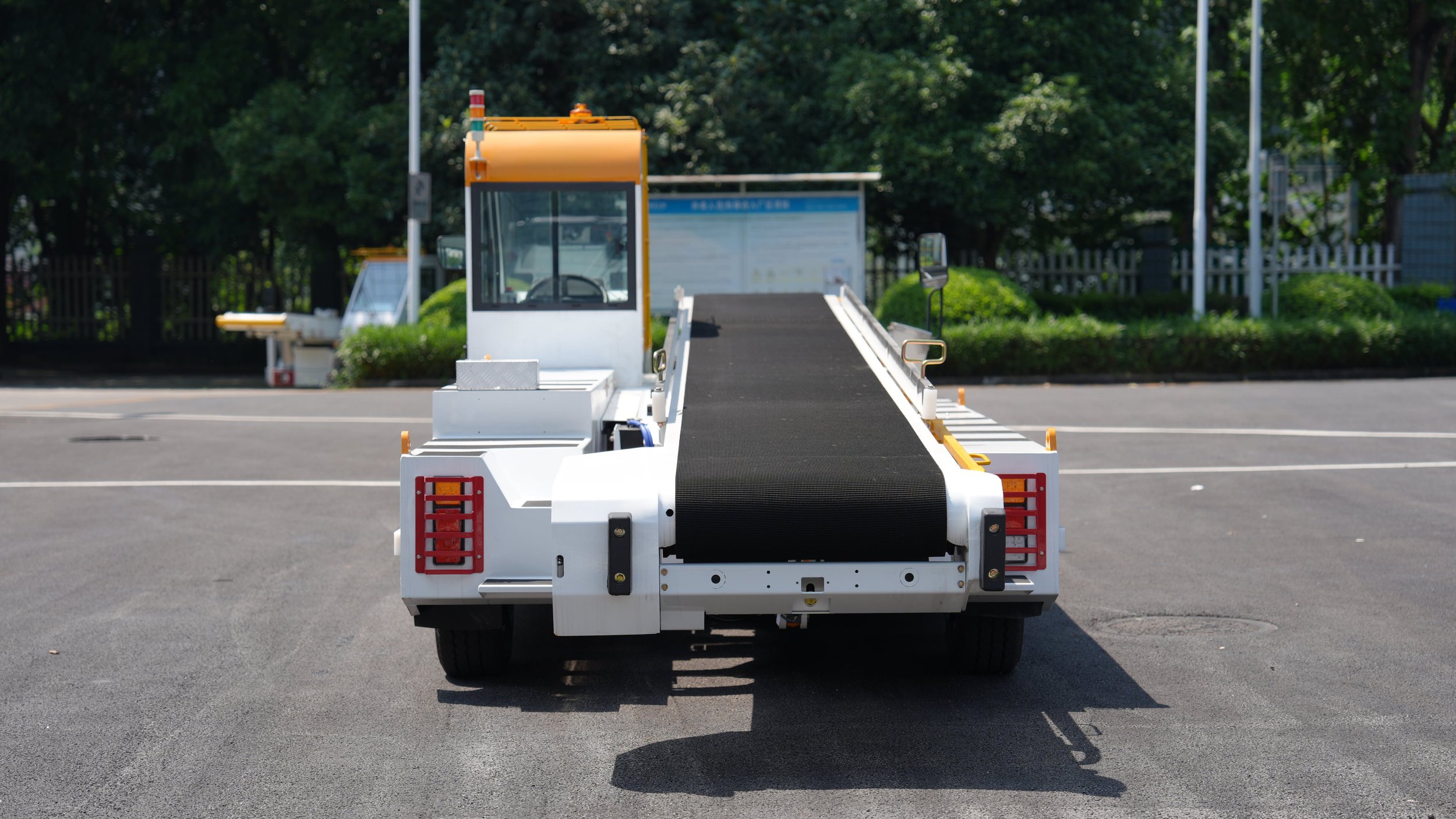

The 700 mm conveyor belt provides smooth baggage transfer, with variable belt speeds from 0.16 to 0.50 m/s.

Wide Service Height Range
Independently adjustable front and rear lift mechanisms support servicing across a wide range of aircraft cargo-door heights.

Integrated CAN Bus Control
Automotive-grade CAN bus architecture integrates chassis and conveyor controls, improving system intelligence, reliability and maintenance efficiency.

Ultra-Low Loading Height
Industry-leading sub-400 mm minimum loading point reduces operator strain during baggage transfer.

Ergonomic Operator Station
High-definition digital display and multifunction steering-column controls provide intuitive vehicle monitoring while keeping hands safe on the wheel.

Full-Electric Drive System
High-capacity CATL LiFePO4 battery pack and liquid-cooled electric powertrain deliver zero emissions, strong endurance and a max driving speed of 30km/h.

Stable Conveyor Structure
A reinforced conveyor frame, guide rollers and adjustable belt-tracking system support stable alignment and reliable long-term operation.

Safety Interlocks and Protection
Safety interlocks, emergency-stop controls, hydraulic locking devices and mechanical supports help prevent unsafe movement during loading operations.

Aircraft Compatibility

Designed for baggage and bulk-cargo handling operations involving regional, narrow-body and wide-body aircraft within the stated service-height range.

Representative aircraft include Airbus A318/A319/A320/A321, A300/A310, A330/A340 and A350; Boeing 737, 747, 757, 767, 777 and 787; as well as ERJ-145, E170/E190, CRJ-900, Fokker 50/100, MD-80/MD-90, MD-11, DC-10 and COMAC C919.

Standards

Designed with reference to applicable MH/T 6030-2024, MH/T 6116, IATA AHM 913, CAAC AC-137-CA electric GSE requirements and relevant civil aviation requirements for electric aircraft belt loaders.
