TK-EQY30
Electric Baggage Tractor
The TK-EQY30 is a compact, fully electric baggage tractor designed for towing baggage dollies, cargo trailers and ground support equipment with a maximum towing capacity of 30,000 kg.
Its 32 kN maximum drawbar pull supports demanding, high-cycle airport ramp and cargo operations. An integrated motor-drive axle, independent front suspension, electro-hydraulic braking and emergency steering system provide responsive handling, stable braking and reliable operation during intensive towing duties.
Specifications
Features
Full-Electric Drive System
A 30 kW permanent-magnet motor with regenerative braking and an 88.87 kWh CATL LFP battery provide zero-emission towing with responsive, stepless speed control.
High-Capacity Towing
A 32 kN maximum drawbar pull and 30,000 kg towing capacity support baggage dollies, ULD dollies and cargo trailers in high-cycle ramp operations.
Independent Front Suspension
A coil-spring independent front suspension with hydraulic dampers provides stable ride quality and improved comfort during extended ramp operations.
Integrated Electro-Hydraulic Braking
An electro-hydraulic braking system with dual-circuit distribution and proportional balancing provides consistent, controlled braking across all four wheels.
Emergency Steering System
An automatic emergency steering system provides backup steering assistance following primary system failure without requiring operator intervention.
Intelligent Battery Management
The CATL LFP battery system integrates continuous safety monitoring, intelligent thermal management and automatic fire protection for reliable apron operation.
Towing Applications
Designed for airport ramp and cargo operations involving baggage dollies, ULD dollies, cargo trailers and compatible ground support equipment within the vehicle's rated towing capacity.
Standards
Designed with reference to applicable MH/T 6048-2020, AC-137-CA-2019-03, AC-137-CA-2024-04R3 and IATA AHM requirements for electric baggage tractors and airport ground support equipment.
Related Products
Medium Electric Pushback Tractor
TK-EQY280
Small Electric Pushback Tractor
TK-EQY120

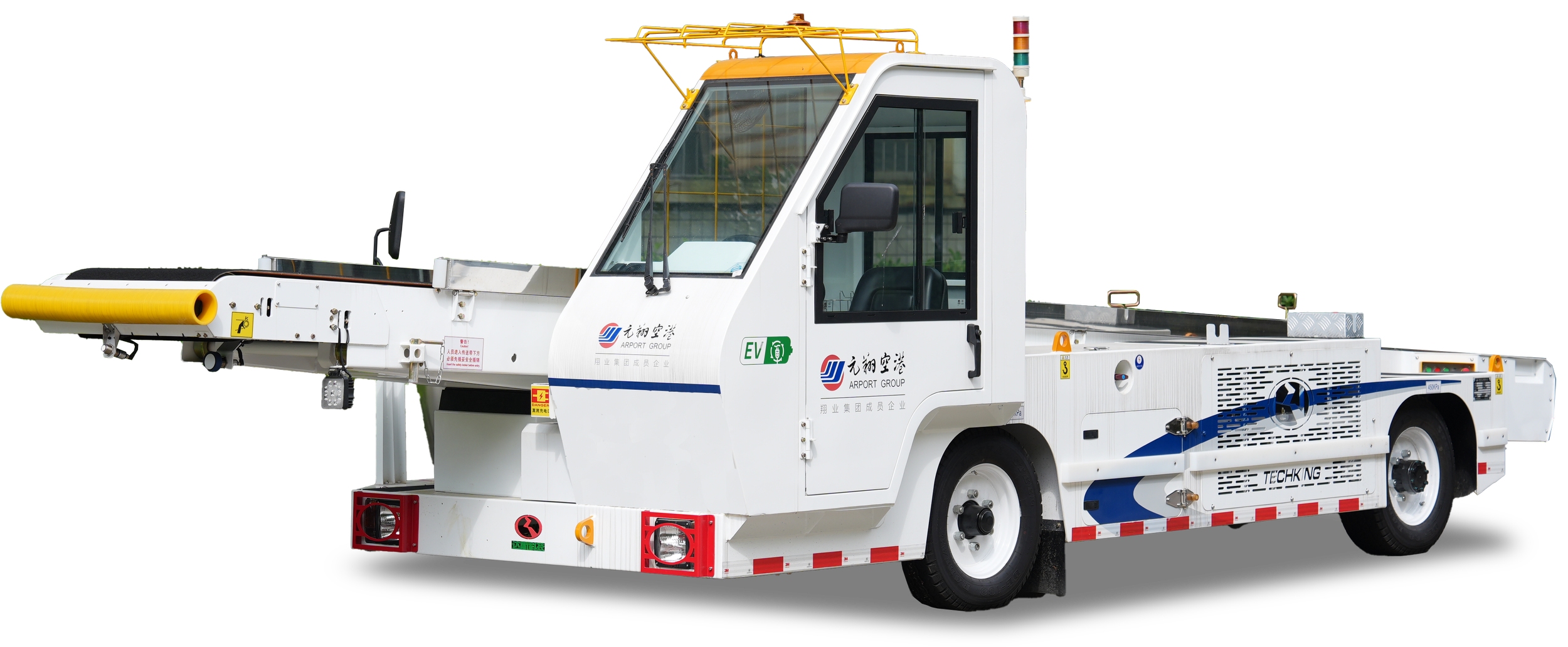

Electric Belt Loader
