Medium Electric Passenger Stairs

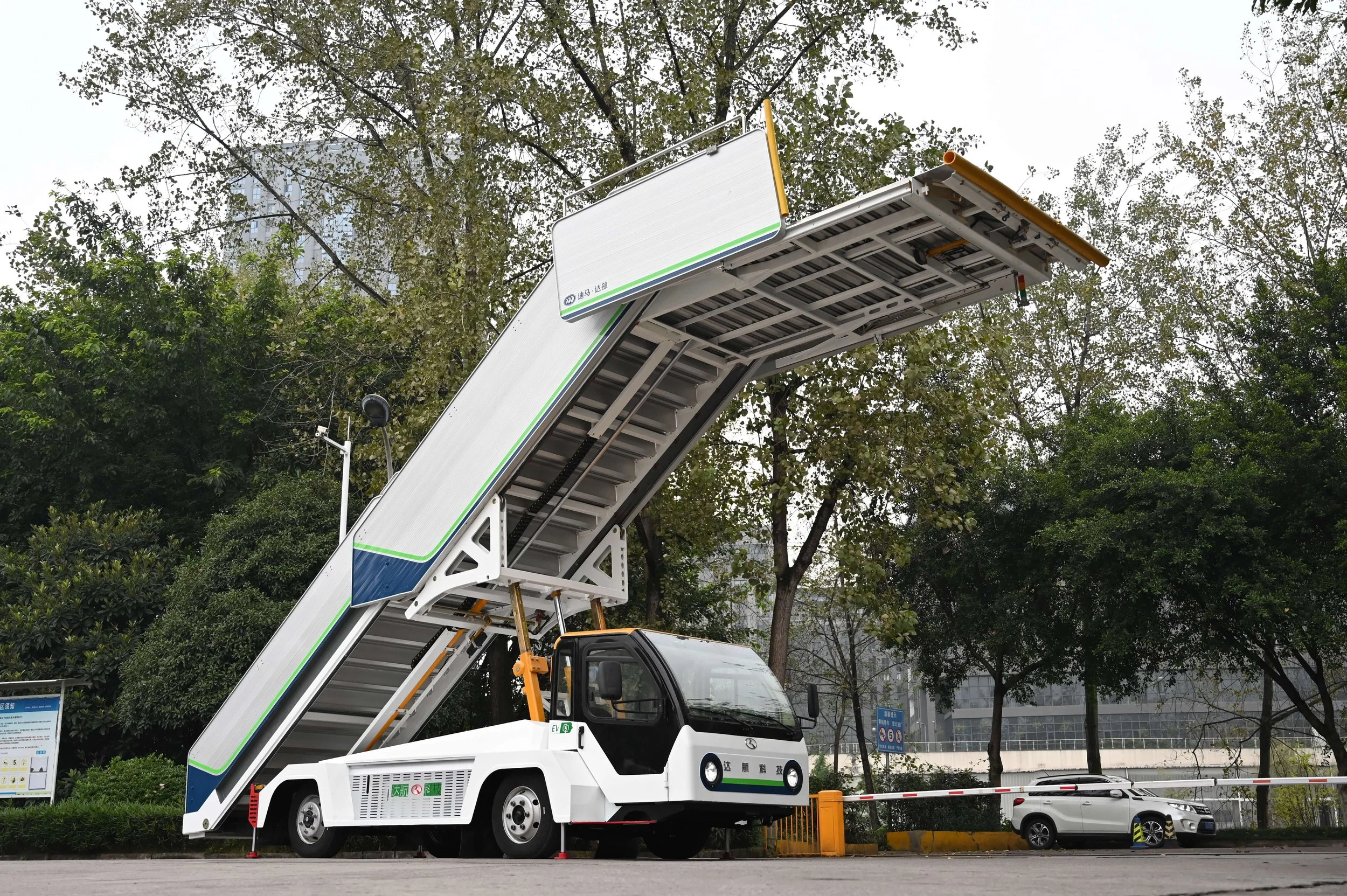

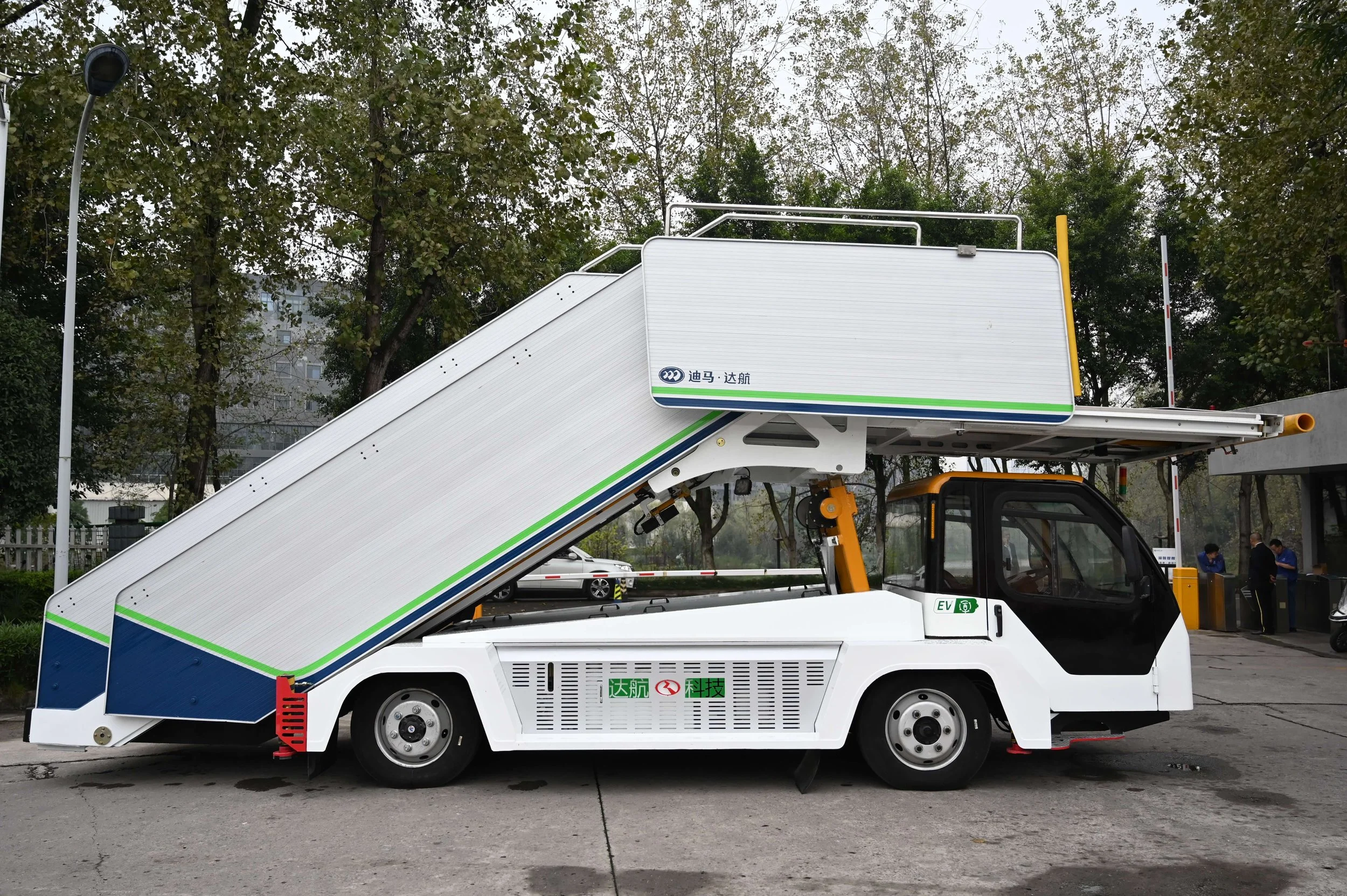

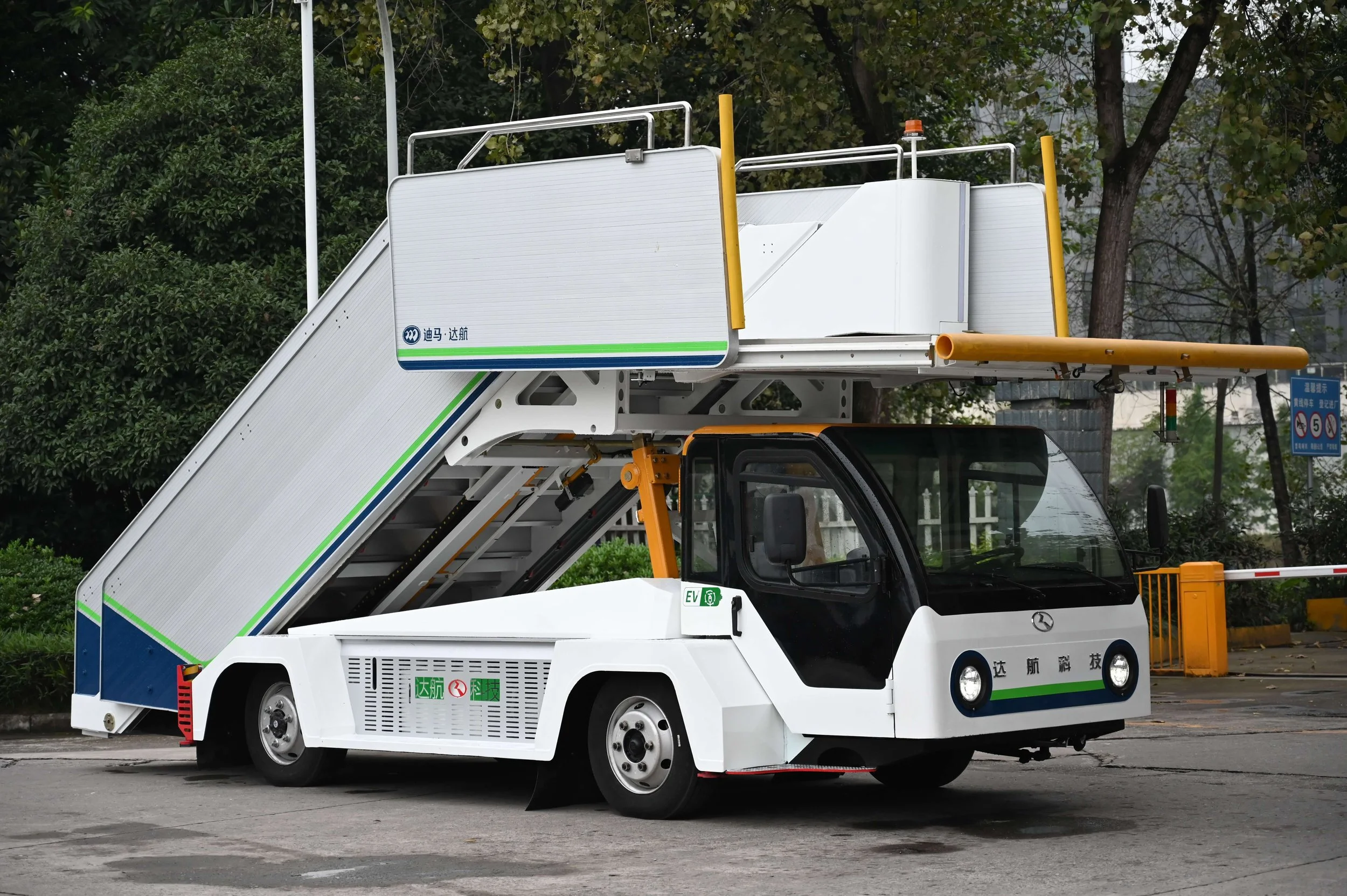

The TK-EKT44 is a fully electric, self-propelled passenger boarding stair designed for aircraft door heights from 1,950 to 4,850 mm across regional and narrow-body aircraft fleets.

Its 1,500 mm clear stairway and spacious 3,500 × 2,200 mm platform support smooth and efficient passenger boarding. A purpose-built low-center-of-gravity chassis, four hydraulic stabilizers and the safe-docking system ensure stable operation, precise final approach and automatic braking near the aircraft. An optional canopy is available for enhanced passenger protection in adverse weather.


    Specifications
      Power Type
      Battery Electric

      Boarding Height
      1,950–4,850 mm

      Clear Stair Width
      1,500 mm

      Platform Size
      3,500 × 2,200 mm

      Step Size (L × W × H)
      276 × 1,500 × 192 mm

      Number of Steps
      23 (11 upper, 12 lower)

      Drive Motor Rated Power
      80 kW

      Battery Type / Capacity
      82.43 kWh LFP

      Maximum Speed
      60 km/h

      Final Docking Speed
      ~0.3 km/h

      Charging Time
      ≤ 1 hour, DC fast charging

      Dimensions (L × W × H)
      7,230 × 2,465 × 3,280 mm

      Curb Weight
      7,270 kg

Features

Extended Boarding Height Range
The 1,950–4,850 mm working range supports passenger boarding across regional, narrow-body, and selected wide-body aircraft.

Full-Electric Drive System
An 80 kW permanent-magnet motor with liquid cooling and an 82.43 kWh LFP battery delivers efficient, low-emission operation.

Safe Aircraft Docking
Distance sensing, controlled low-speed approach, automatic braking and anti-collision protection support safe and accurate aircraft docking.

Safety Interlocks
Travel, charging, stabilizer deployment, and stair operations are electronically interlocked to prevent unsafe vehicle movement.

Structural Stability
A purpose-built low-center-of-gravity chassis, wide-track axles, four hydraulic stabilizers and dual locking support stable elevated operation.

Passenger Safety & Flow

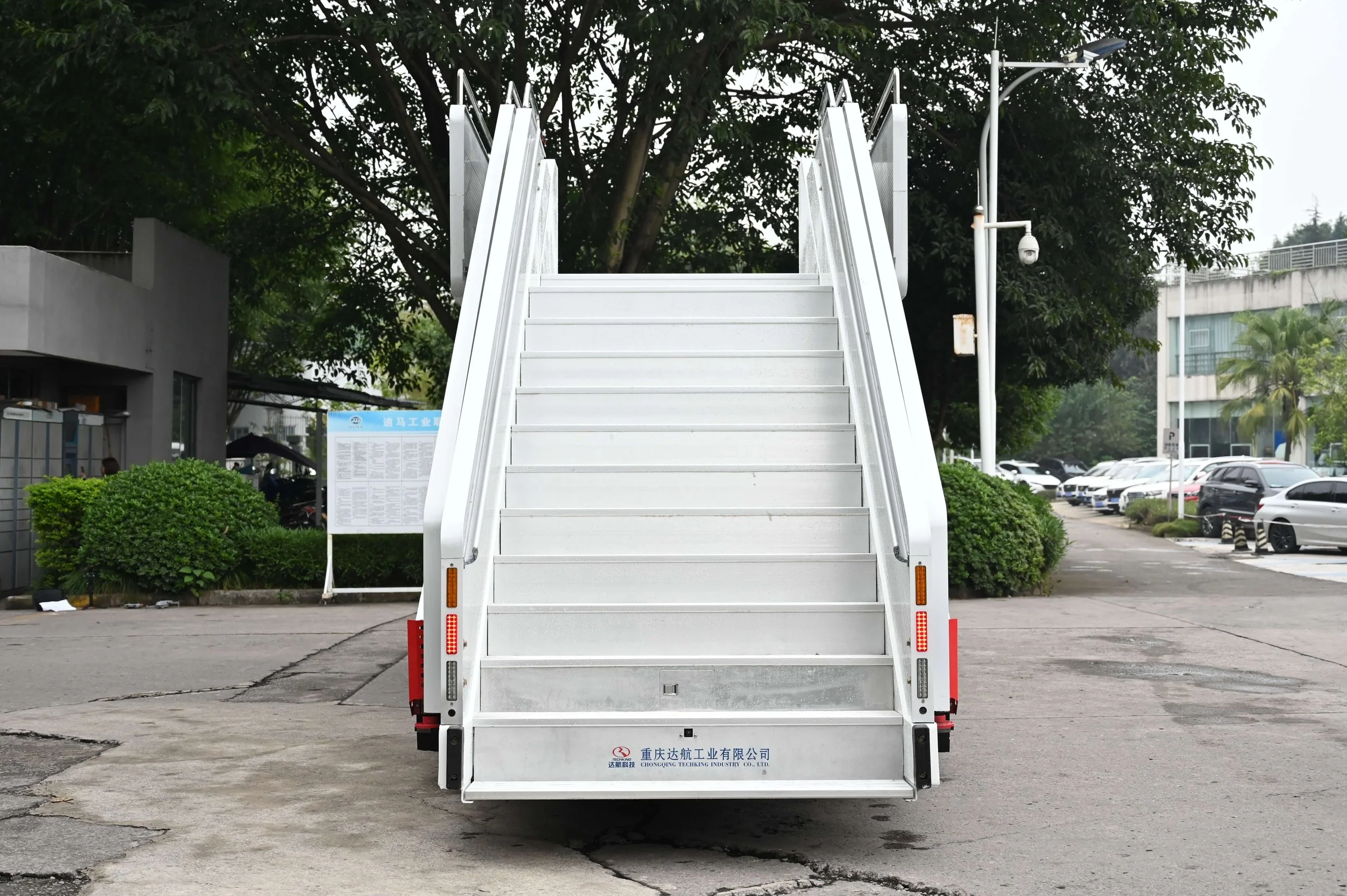

A 1,500 mm clear stairway, anti-slip aluminum treads, illuminated handrails and a large platform support safe, efficient boarding.

Operator Control & Monitoring

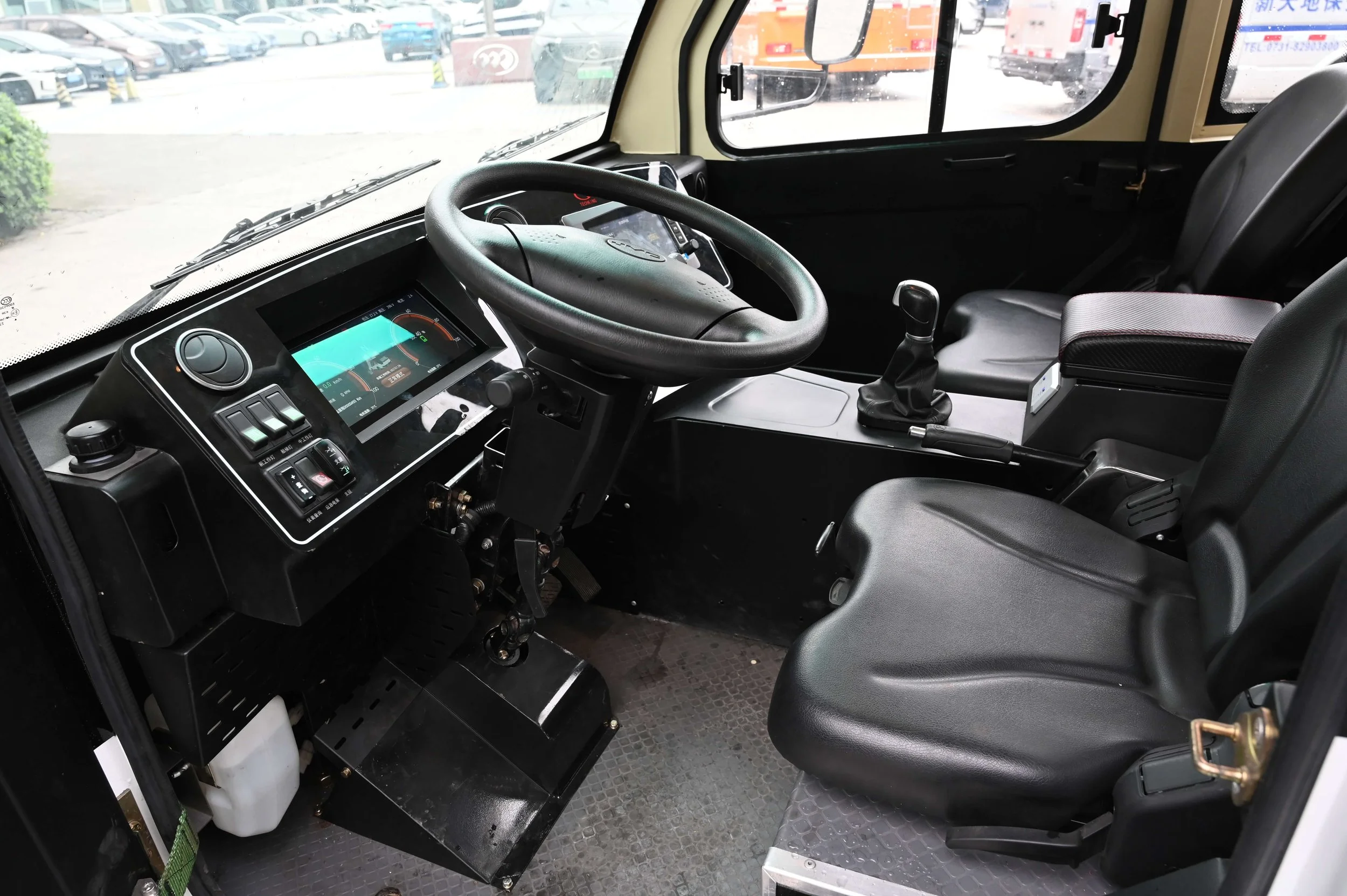

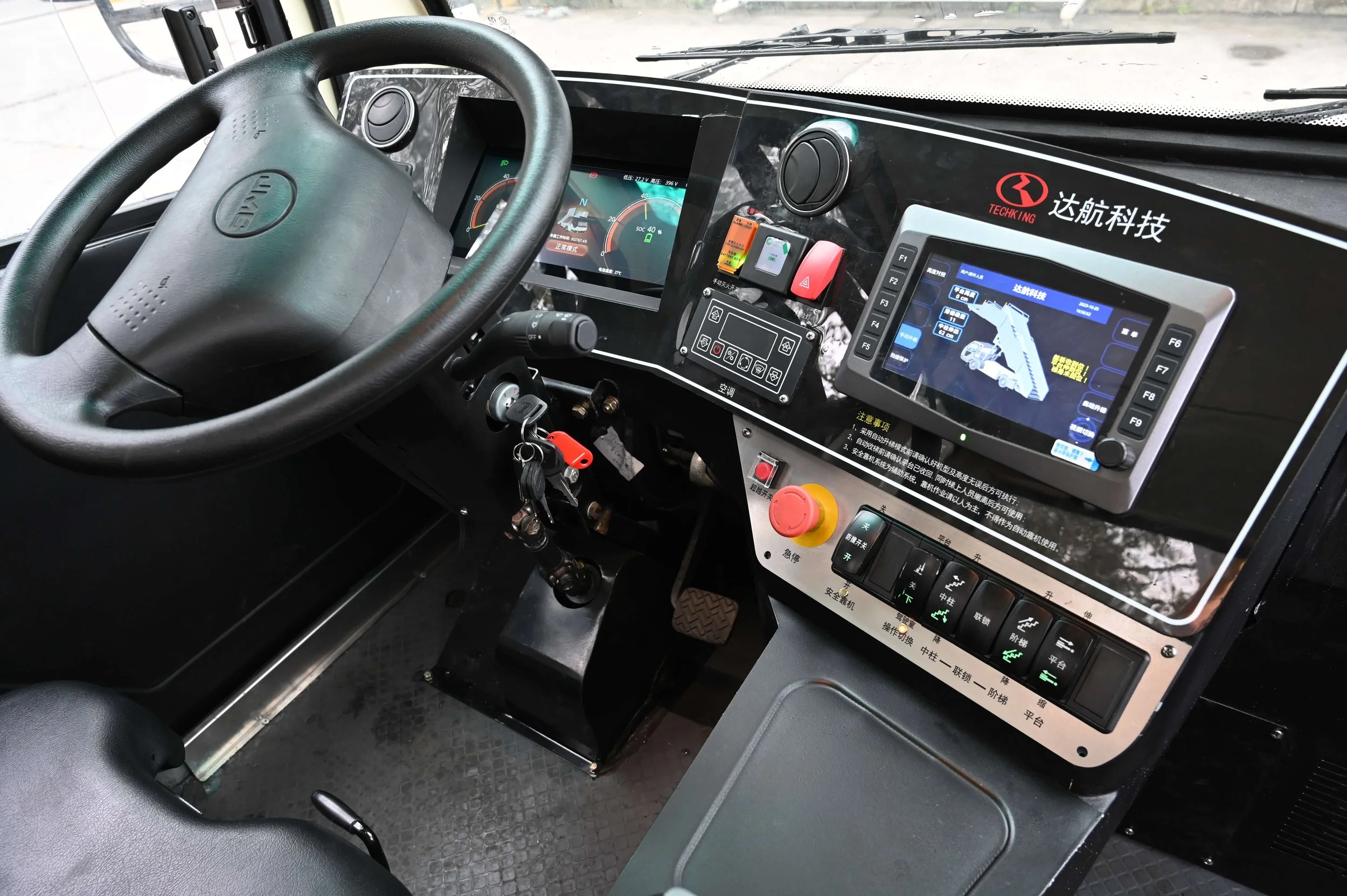

CAN-bus controls, a 10.25-inch digital instrument display and an 8-inch equipment display provide intuitive operation and clear system monitoring.

Emergency Operation
Emergency electric and manual pumps, manual retraction controls and towing points allow rapid aircraft clearance following a system failure.

Aircraft Compatibility

Designed to accommodate a broad range of regional, narrow-body, and selected wide-body aircraft.

Representative models include A318/319/320/321, A300/310, A330/340, A350, B737, B747, B757, B767, B777, B787, ERJ145/E170/E190, F50/F100, CRJ-900, MD-80/90/11, DC-10, C919

Standards

Designed with reference to applicable IATA AHM, SAE and civil aviation requirements for passenger boarding stairs and electric ground support equipment.
