Dima Industry > Ground Support Equipment > TK-EQY120
TK-EQY120
Small Electric Pushback Tractor

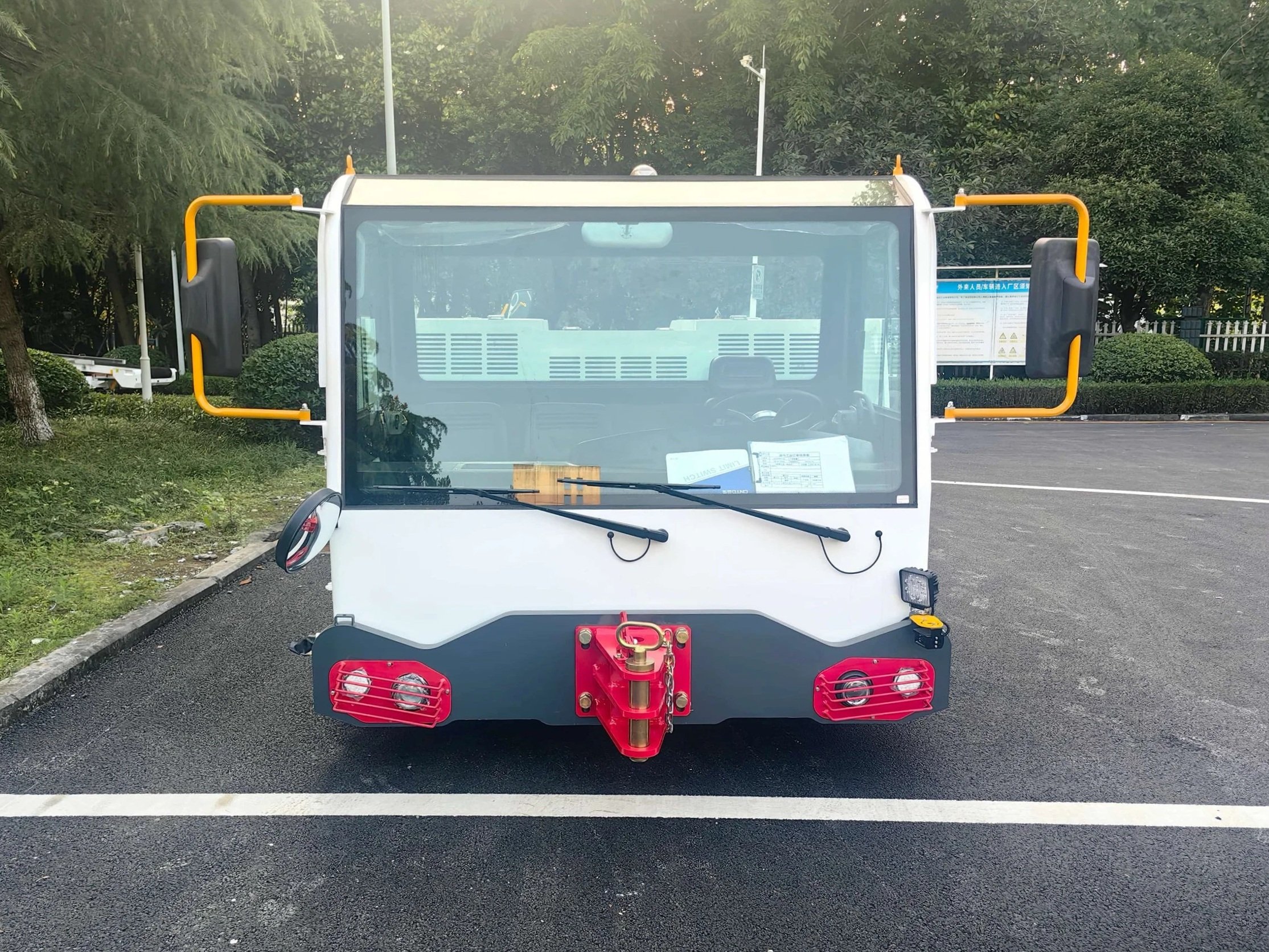

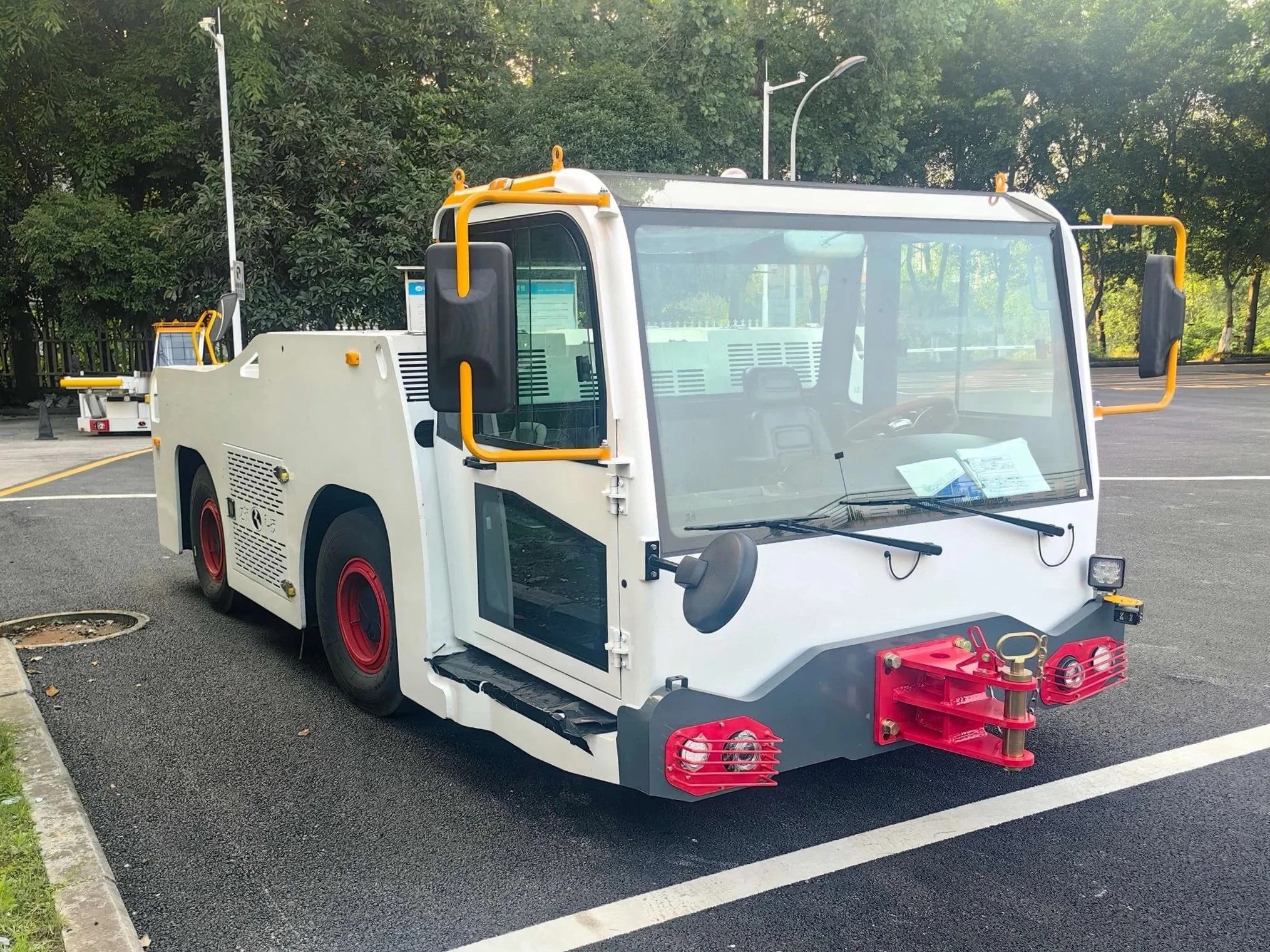

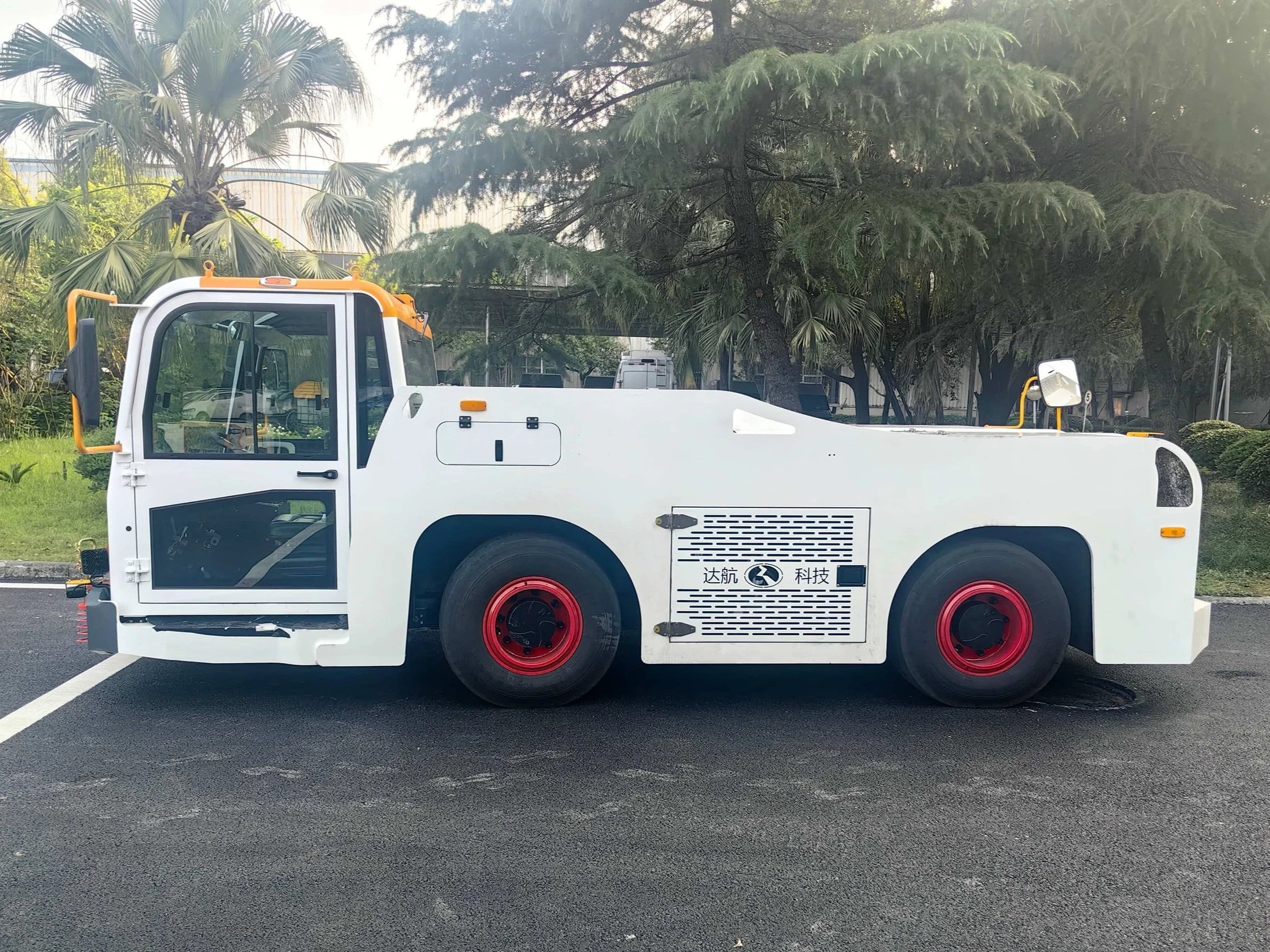

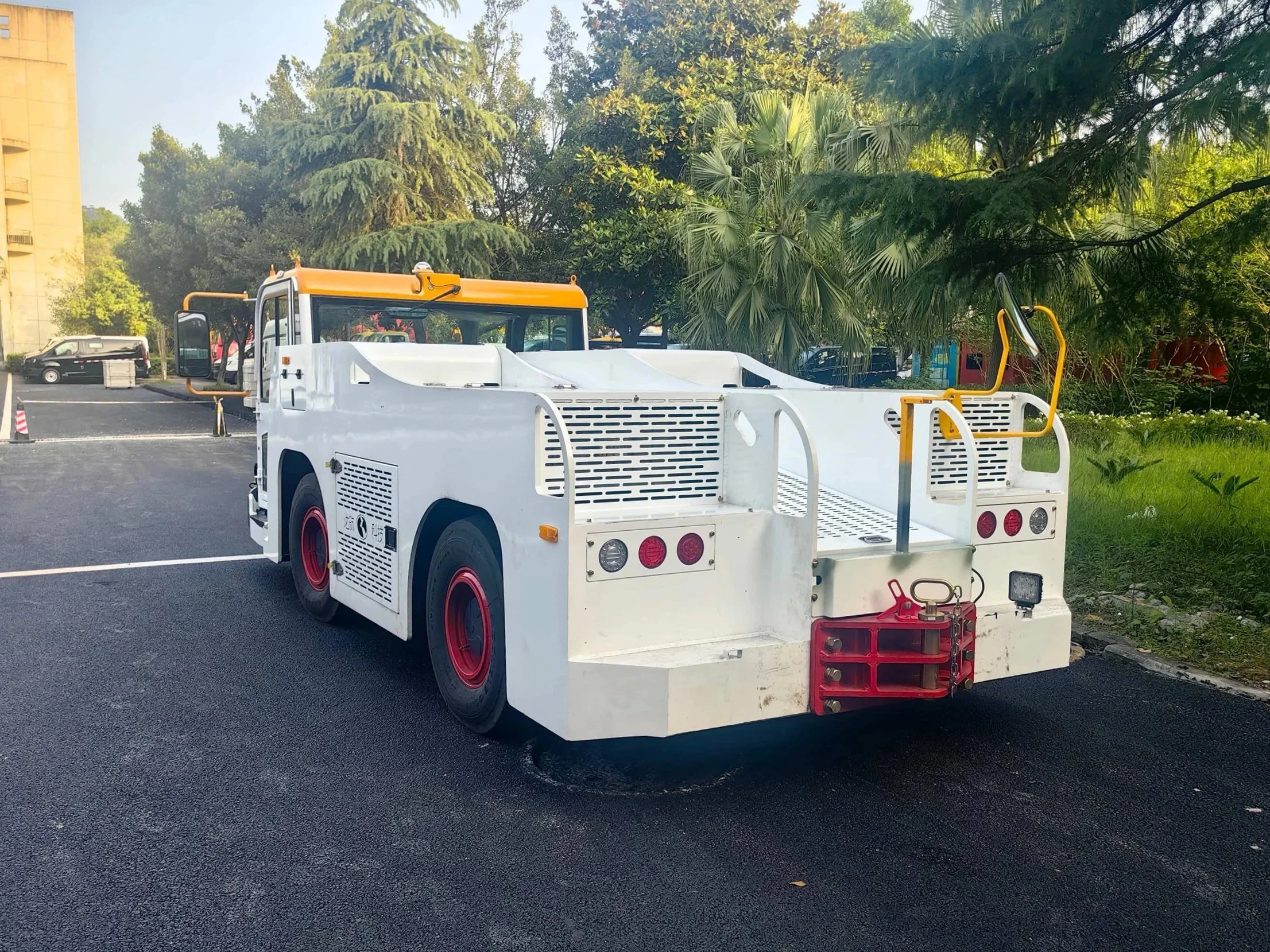

The TK-EQY120 is a compact, fully electric aircraft pushback tractor designed for pushback and towing of regional and narrow-body aircraft up to 205 tons MTOW.
Its compact footprint and 1,910 mm overall height provide excellent maneuverability on congested aprons. A four-wheel-drive powertrain with a dedicated low-speed traction gear, multi-mode all-wheel steering with automatic straightening, and a 360° visibility cab deliver stable high-traction towing, precise low-speed control and confident aircraft handling.
Specifications
Features
High-Traction Drive System
Dual permanent-magnet drive motor, a transfer case and dedicated low-speed traction gear deliver 130 kN of controlled drawbar pull.
Full-Electric Drive System
A 155.33 kWh CATL LFP battery and IP68 liquid-cooled motors provide zero-emission apron operation with high efficiency and a 145 km range.
Multi-Mode Steering & Auto-Straightening
Electronically selectable front-wheel, four-wheel and crab steering, combined with an automatic alignment correction system ensures straight-line tracking after turns.
Precision Low-Speed Control
Dedicated low-speed traction gearing and a minimum stable speed of 0.1 km/h provide smooth, controlled aircraft pushback and towing.
Operator Visibility and Monitoring
A low-profile fixed cab, panoramic visibility, front and rear cameras, and dedicated tow-hook mirrors provide confident aircraft handling in all directions.
Safety Redundancy & Interlocks
Dual-circuit hydraulic brakes, electric and manual emergency steering, emergency stop and electrical interlocks enhance operational safety.
Fast Charging & High Availability
DC fast charging replenishes the battery in approximately two hours, while the 145 km range supports extended daily apron operation.
Compact Low-Profile Chassis
The short chassis and 6,150 mm turning diameter on four-wheel steering support efficient maneuvering in congested and space-constrained apron areas.
Aircraft Compatibility
Designed for pushback and towing operations involving regional, narrow-body and selected wide-body aircraft up to 205 t MTOW.
Representative models include Airbus A318/A319/A320/A321 and selected A300/A310 variants; Boeing 727 and 737 Classic/NG; as well as MD-80/MD-90, ERJ-145, E190, Fokker 50/100, ARJ21 and MA60 aircraft within the stated MTOW range.
Standards
Designed with reference to applicable IATA AHM, civil aviation and electric ground support equipment requirements.
Related Products

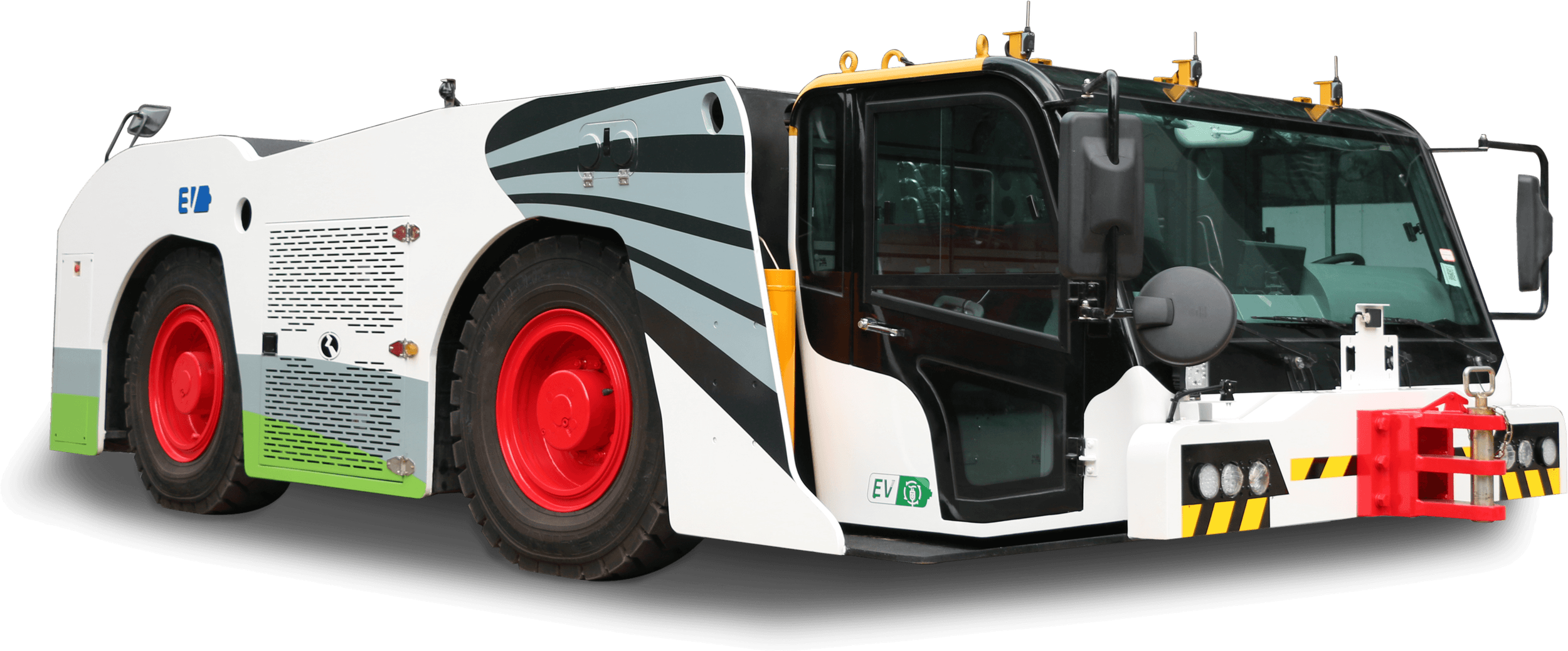

Medium Electric Pushback Tractor
TK-EQY280
Medium Diesel Pushback Tractor
TK-QY280

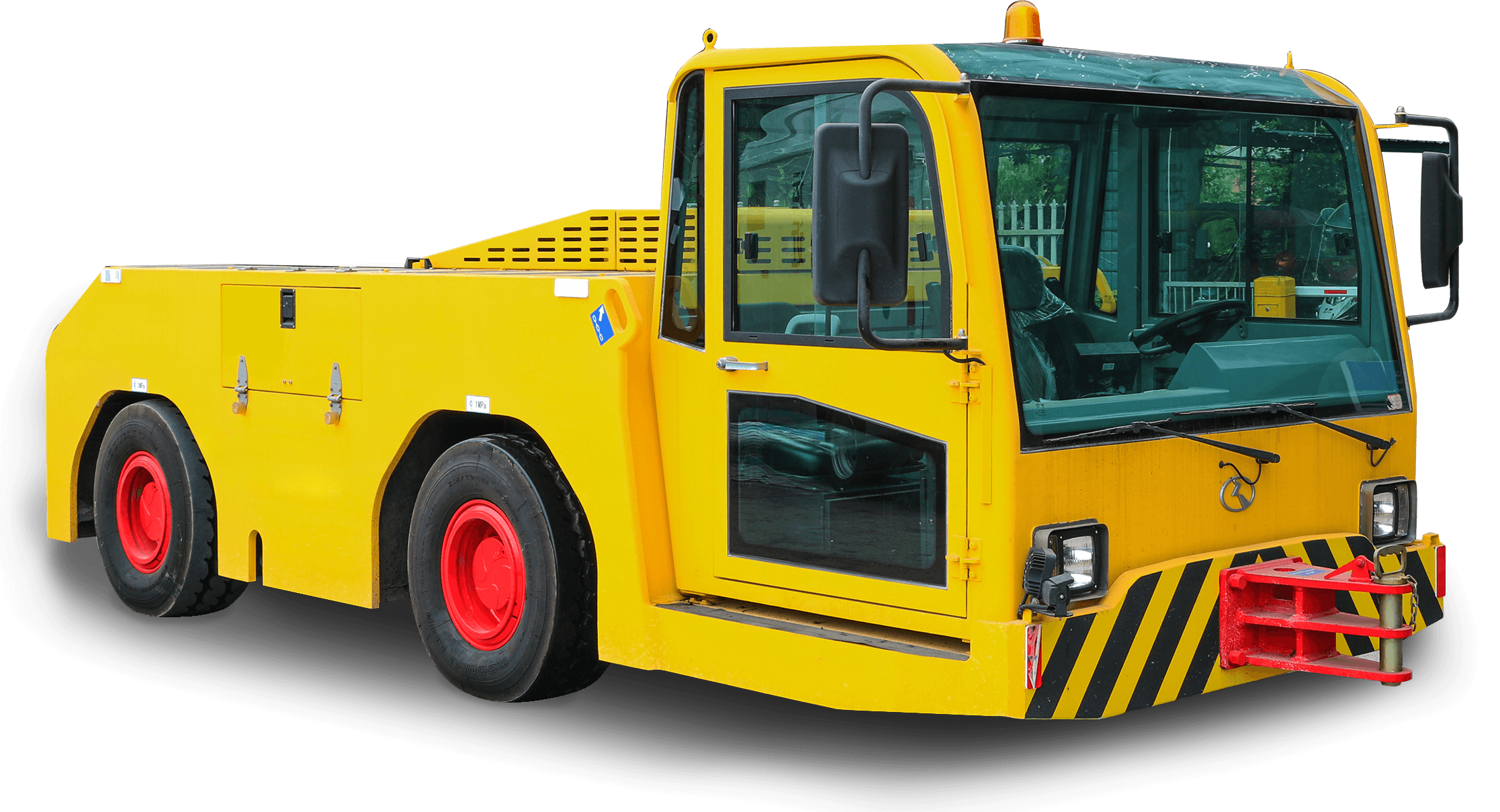

Small Diesel Pushback Tractor
