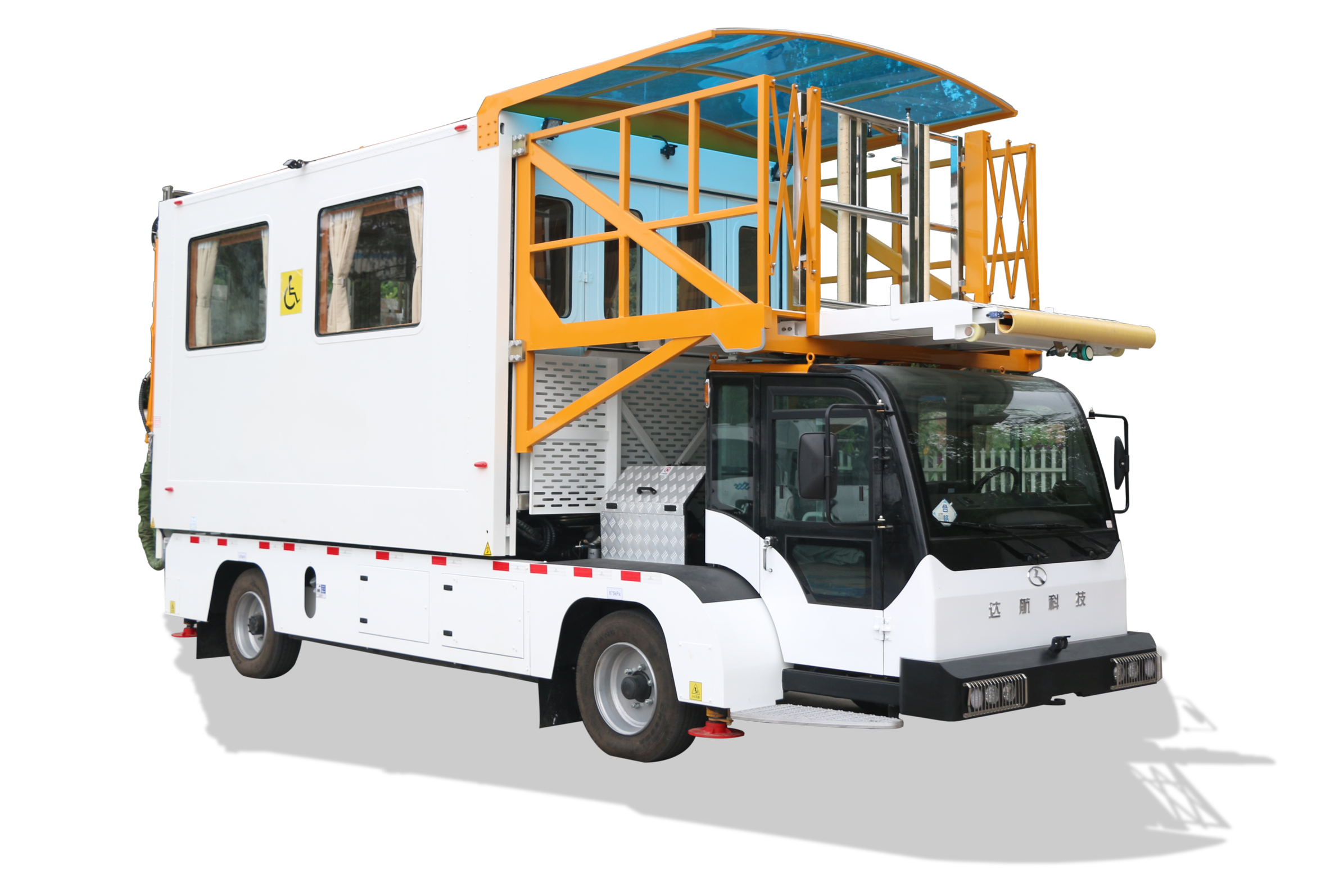

TK-TD60
Ambulift
The TK-TD60 uses a purpose-built chassis and a spacious, safety-focused cabin to deliver smooth, efficient, and reliable boarding assistance for passengers with reduced mobility across a wide aircraft range.
Folding rear platform
PLC-controlled hydraulic lift system
Dedicated self-made chassis
2200-5800mm lifting range
Comprehensive safety protection devices
Wide stabilizing support span
Specifications
Front Platform Height
2200 – 5800 mm
Fixed Platform Size
2750 × 2270 mm
Platform Extension
0 – 600 mm
Curb Weight
9150 kg
Fixed Platform Load
400 kg
Lift Platform Load
300 kg
Interior Dimensions
4240 × 2400 × 2100 mm
Rear Platform Size
1550 × 2270 mm
Dimensions (L × W × H)
7690 × 2680 × 3720 mm
Enclosure Rated Load
1000 kg
Aircraft Type
A318/319/320/321, A300/310, A330/340, A350, B737, B747, B757, B767, B777, B787,
ERJ145/E170/E190, F50/F100, CRJ-900, MD-80/90/11, DC-10, C919
