TK-KT58V

Diesel VIP Passenger Stairs

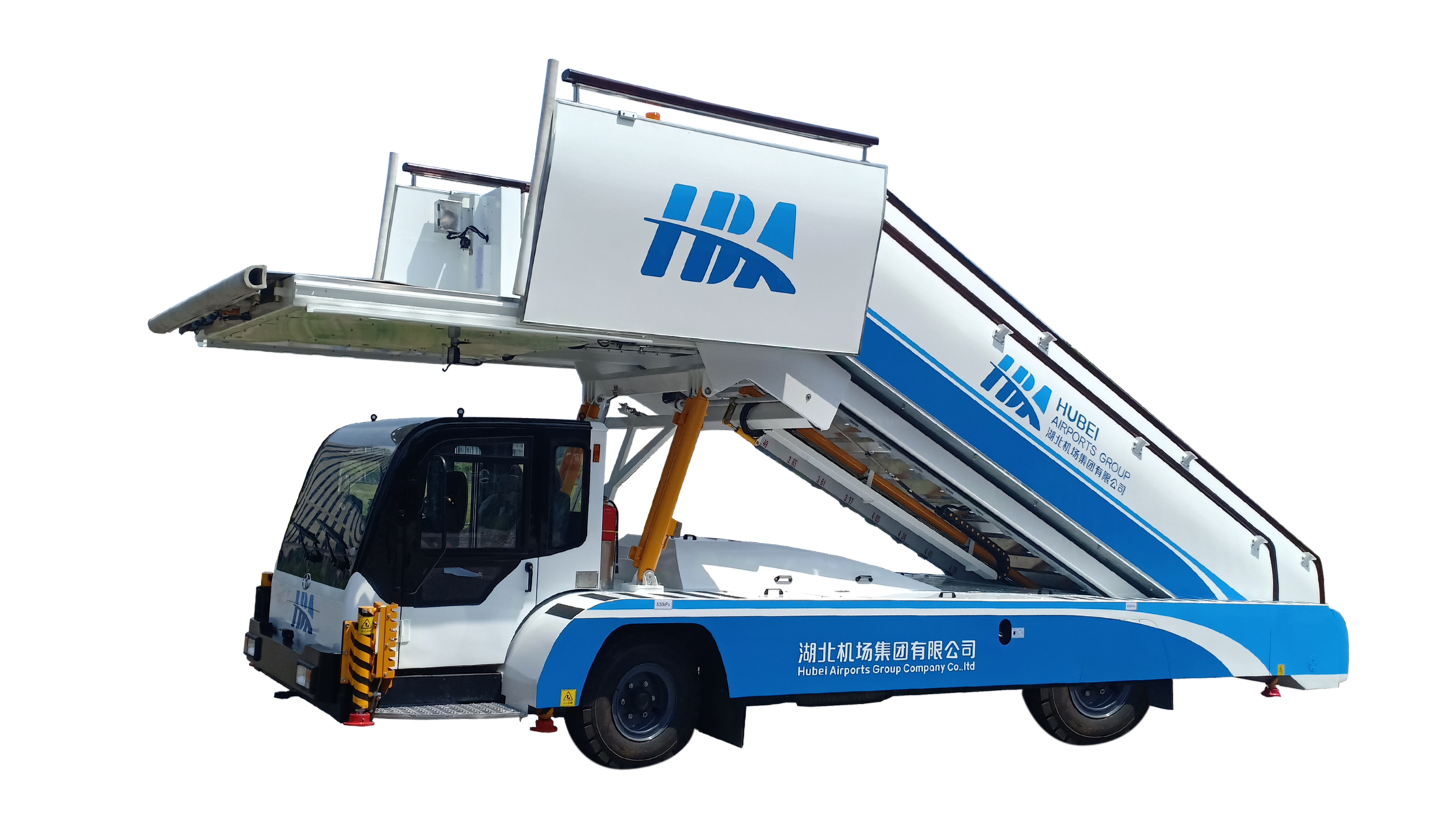

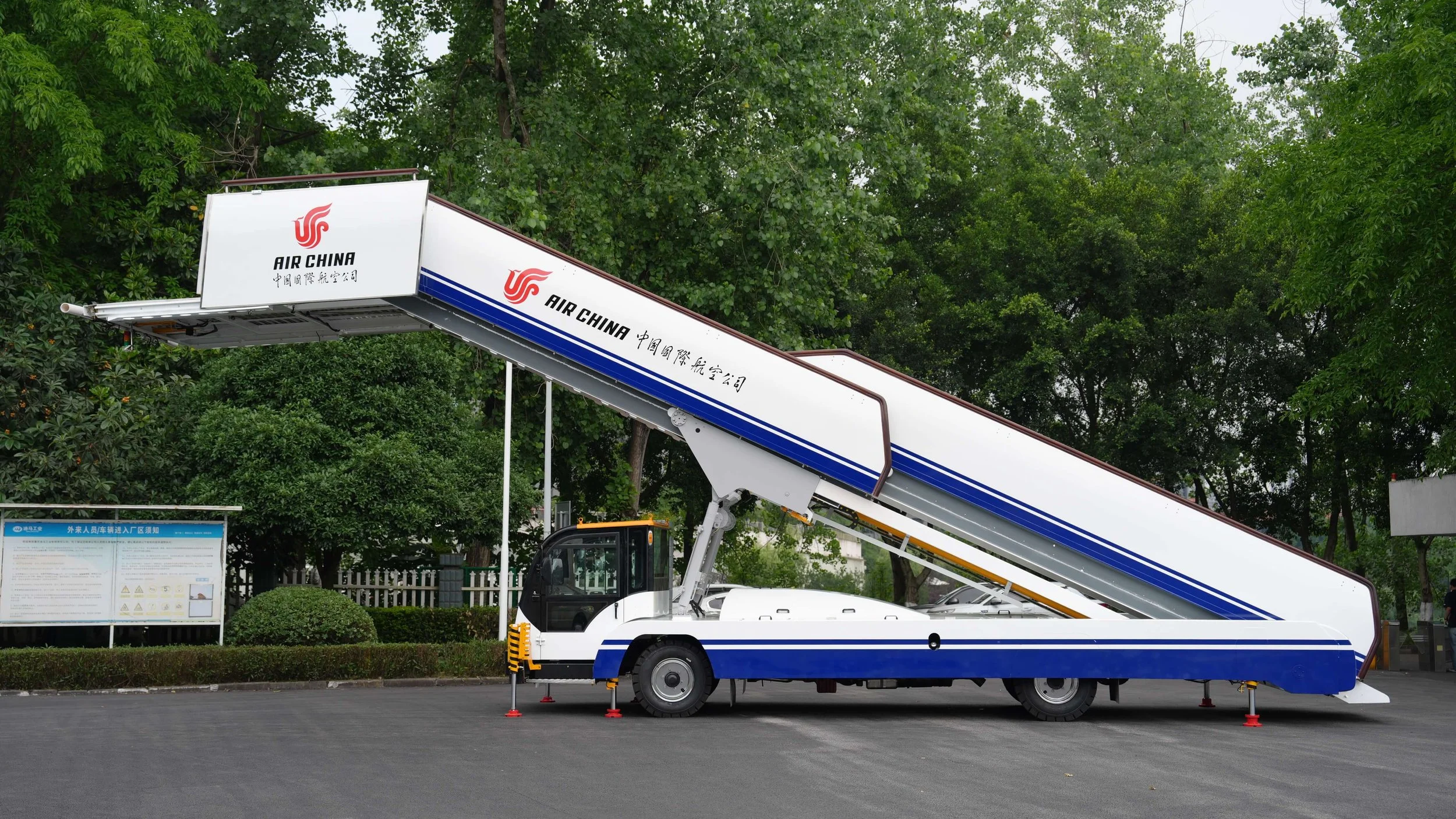

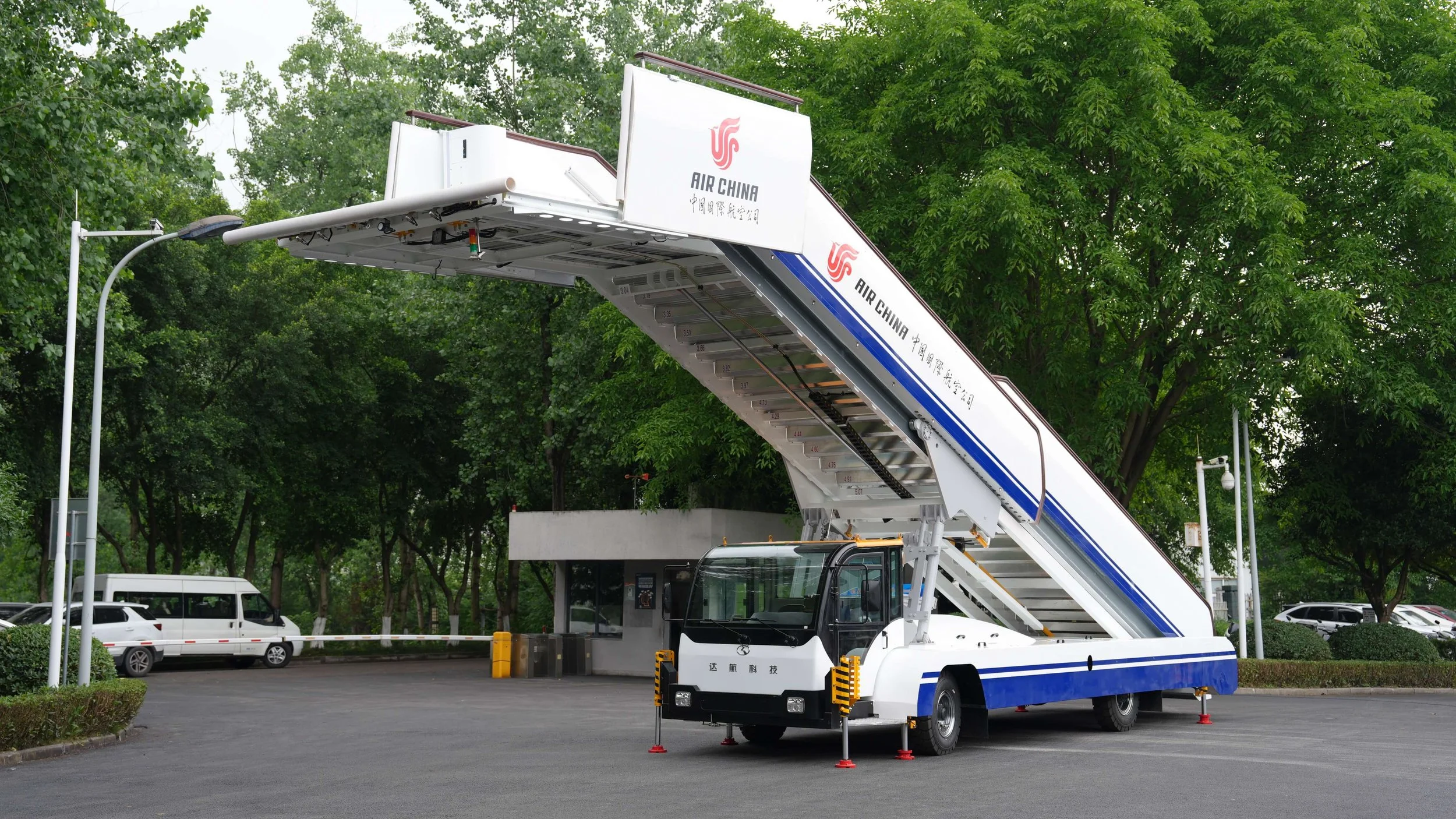

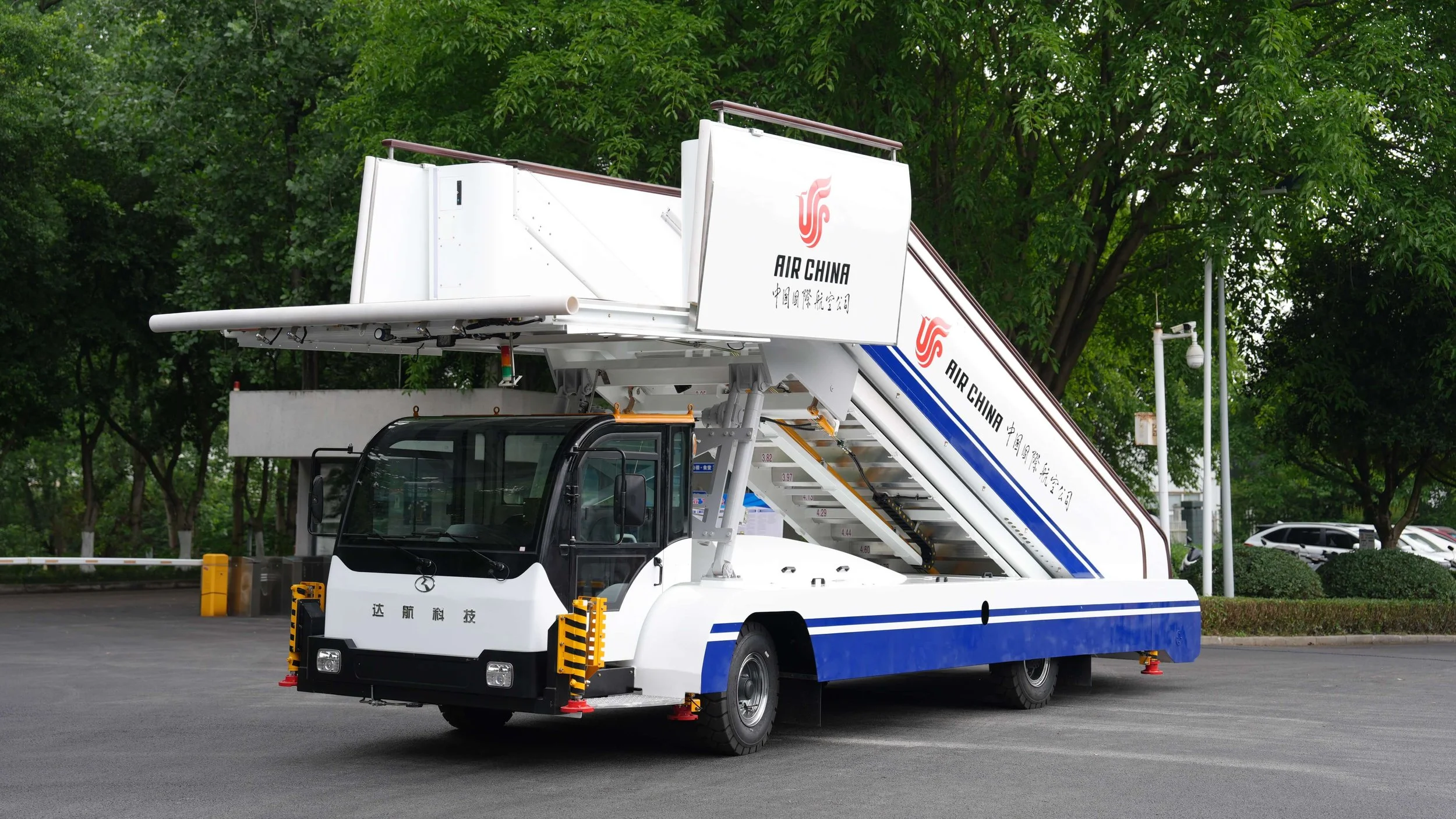

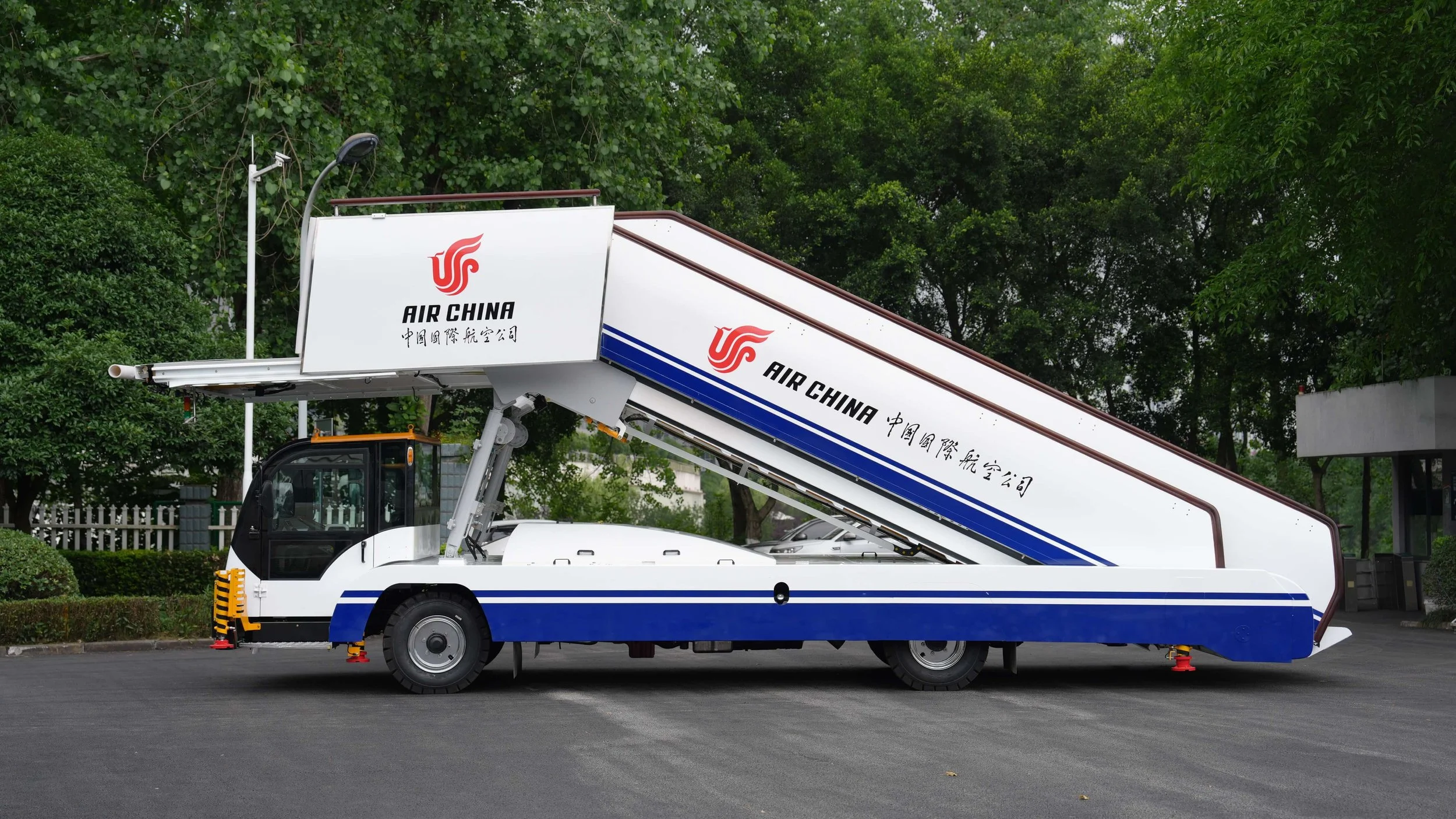

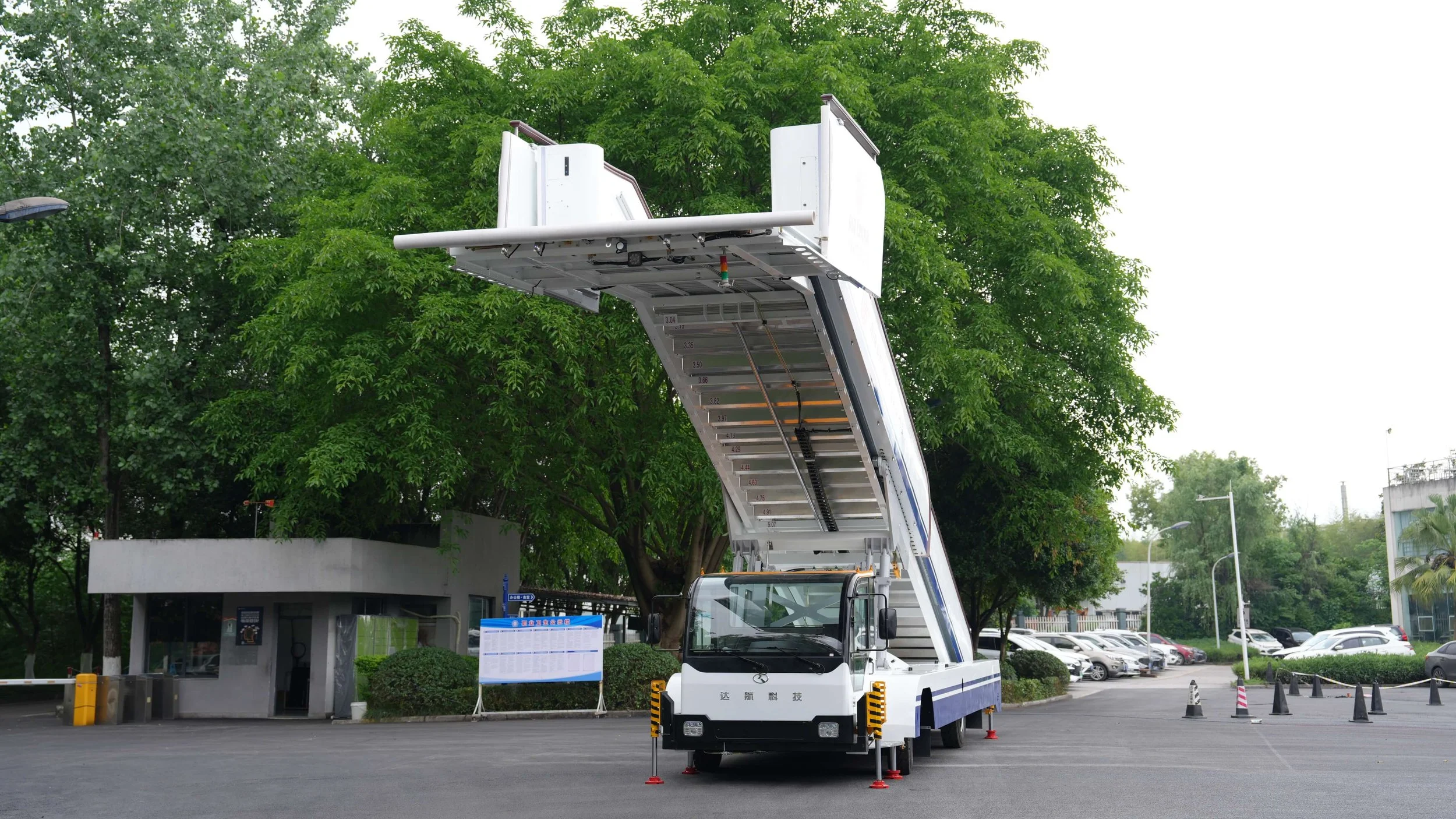

The TK-KT58V is a premium, high-capacity, diesel-powered, self-propelled passenger boarding stair designed for aircraft door heights from 2,550 to 5,800 mm across regional, narrow-body and wide-body fleets.

Its 1,500 mm clear stairway, shallow 157 mm steps and 3,525 × 2,500 mm platform provide a more comfortable boarding experience and support up to 90 passengers. An automatic height-positioning system, auxiliary safe-docking system and six hydraulic stabilizers provide convenient setup, controlled aircraft approach and stable elevated operation. Optional premium carpeting and decorative handrail finishes are available for VIP and executive boarding applications.

Contact Us

Specifications

Power Type Diesel
Boarding Height 2,150–5,800 mm
Clear Stair Width 1,500 mm
Platform Size (L × W) 3,640 × 2,820 mm
Step Size (L × W × H) 276 × 1,500 × 192 mm
Number of Steps 27 (12 upper + 15 lower)
Payload 7,500 kg
Engine Rated Power 75 kW @ 3,600 rpm
Maximum Speed 50 km/h
Minimum Stable Speed 3 km/h
Dimensions (L × W × H) 7,990 × 2,465 × 3,680 mm
Curb Weight 8,500 kg

Features

Premium Stair Geometry
The 157 mm step height and 295 mm tread depth provide a shallower, more comfortable boarding angle for premium passenger use.

Extended Boarding Height Range
The 2,550-5,800mm working range supports passenger boarding across regional, narrow-body and wide-body aircraft.

Diesel Drive System
A Dongfeng Cummins 110 kW diesel engine with Allison 2100 automatic transmission delivers reliable, high-torque performance for continuous apron duty.

Safe Aircraft Docking
Distance sensing, controlled low-speed approach, automatic braking and anti-collision protection support safe and accurate aircraft docking.

Safety Interlocks
Travel, stabilizer deployment and stair operations are electronically interlocked, with handbrake and hydraulic action interlocks to prevent unsafe vehicle movement.

Structural Stability
A purpose-built low-center-of-gravity chassis, wide-track axles, six hydraulic stabilizers and dual locking support stable elevated operation.

Passenger Safety & Flow

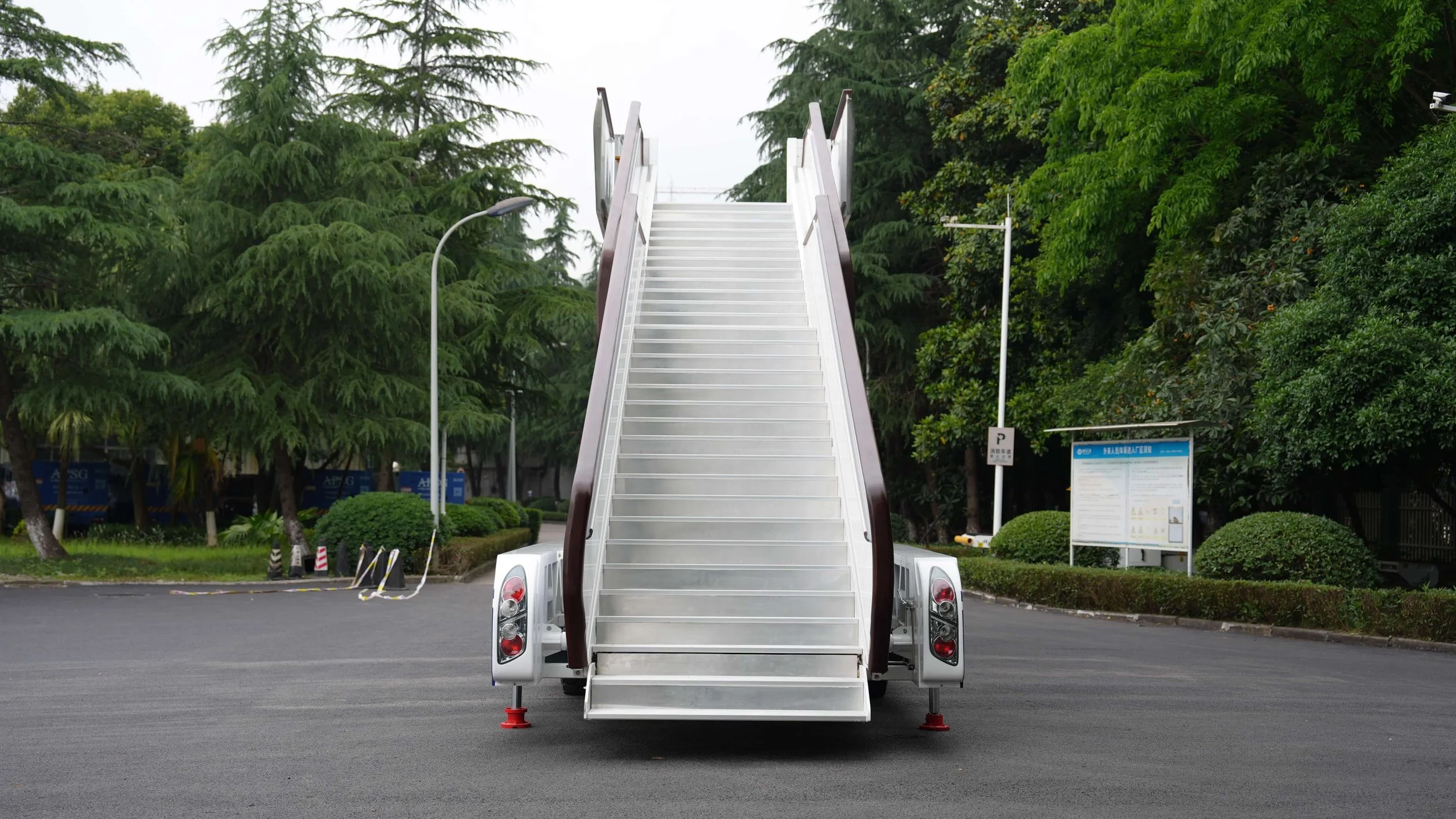

A 1,500 mm clear stairway, anti-slip aluminum treads, handrails with illuminated LED strips and a large platform support safe, efficient boarding for up to 90 passengers.

Premium Passenger Safety and Comfort
Wide stairs, shallow steps, illuminated handrails, high guardrails and anti-slip treads improve passenger comfort and safety.

Operator Control & Monitoring
CAN-bus controls, integrated status displays, audible/visual warnings and a central height display provide clear operating information and simplified fault monitoring.

Emergency Operation
Emergency electric and manual pumps, manual retraction controls and towing points allow rapid aircraft clearance following a system failure.

Aircraft Compatibility

Designed to accommodate a broad range of regional, narrow-body and wide-body aircraft.

Representative models include Airbus A319/A320/A321, A300/A310, A330/A340/A350 and A380; Boeing 737, 747, 757, 767, 777 and 787; and COMAC ARJ21 and C919.

Standards

Designed with reference to applicable IATA AHM, SAE and civil aviation requirements for passenger boarding stairs and diesel ground support equipment.

Related Products

Large Electric Passenger Stairs
TK-EKT58

Medium Electric Passenger Stairs
TK-EKT44

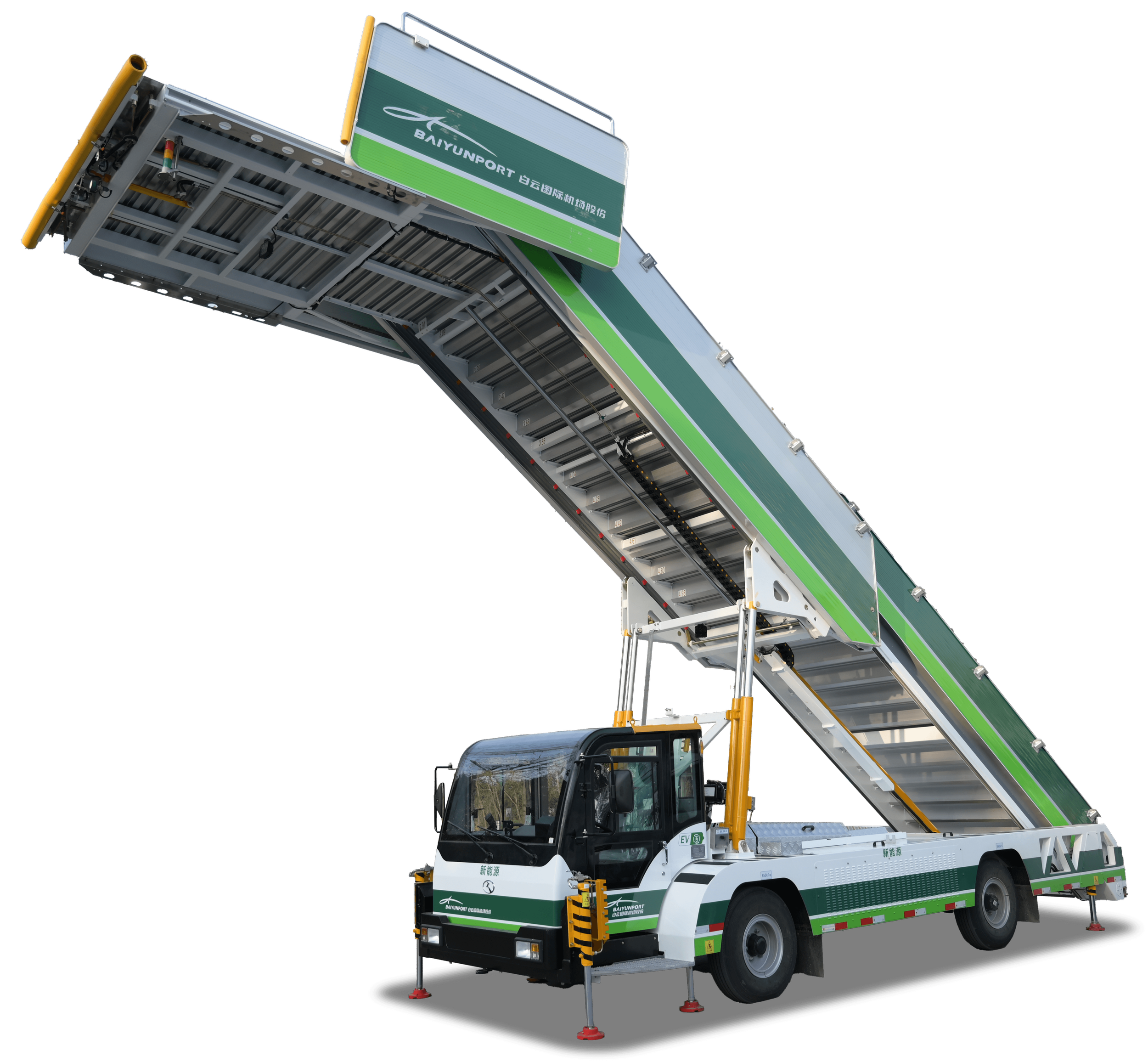

Diesel Passenger Stairs
