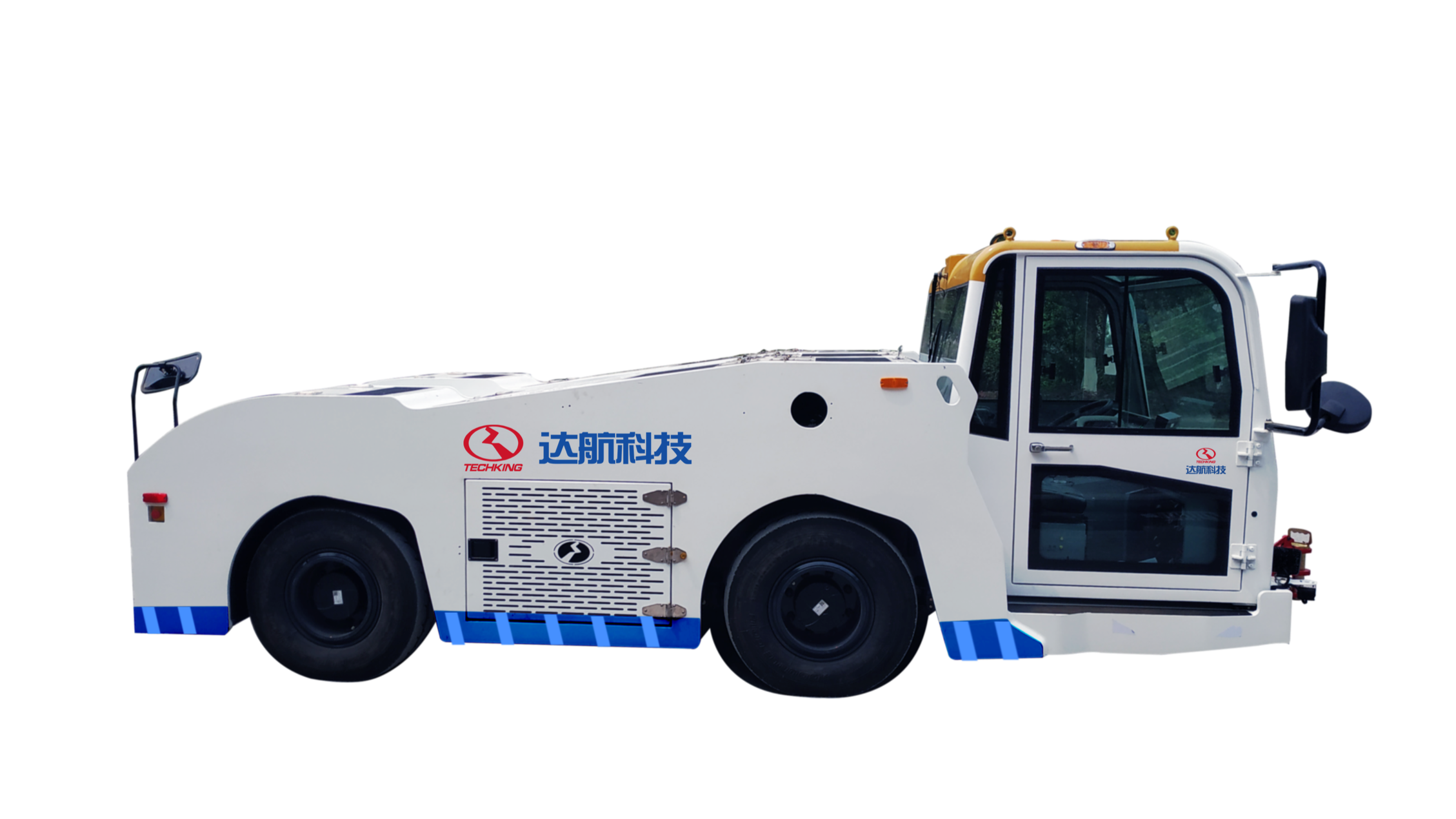

TK-EQY120
Electric Small
Aircraft Tractor
The TK-EQY120 is a 205-ton-class electric aircraft tractor engineered for stability, precise control, and agile operation in confined apron environments.
High-efficiency electric drive system
AC/DC dual-mode fast charging
Gearless direct-drive powertrain
IP67-rated high-voltage components
Three steering modes: front-wheel, four-wheel, crab steering
Automotive-grade high-voltage platform
Specifications
Drawbar Pull
130 kN
Wheelbase
2750 mm
Towable Mass
205 tons
Charging Time
≤ 2 h
Dimensions (L × W × H)
5770 × 2190 × 1910 mm
Ground Clearance
210 mm
Curb Weight
15,000 kg
Maximum Speed
31 km/h
Range
120 km
Rated Power
157 kW
Aircraft Range
A318/319/320/321, A300/310, B737, B757, ERJ145/E170/E190,
F50/F100, MD-80/90, C919
