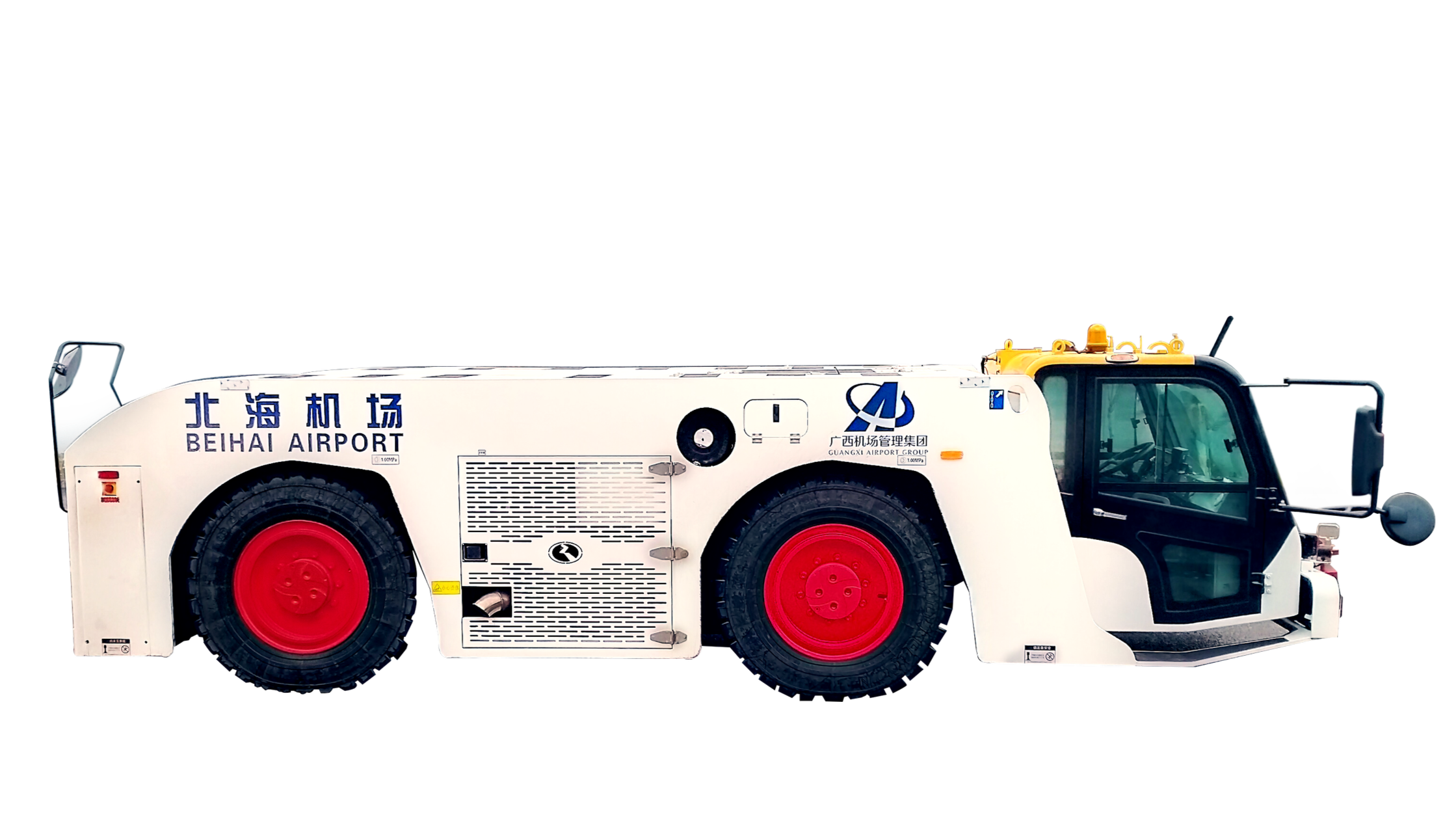

TK-QY200
Mid-Size
Aircraft Tractor
The TK-QY200 is a 322-ton-class tow tractor designed for precise, reliable aircraft handling, combining a low-profile chassis, refined powertrain, and multi-mode steering for efficient apron operations.
Automotive-grade electronic control system
Independent multi-system cooling
Variable-flow hydraulic pump system
Centralized automatic lubrication
Three steering modes; front-wheel, four wheel, crab steering
Flexible, low-profile compact chassis
Specifications
Drawbar Pull
212 kN
Wheelbase
2750 mm
Towable Mass
322 tons
Engine Power
162 kW
Dimensions (L × W × H)
7264 × 2600 × 1650 mm
Ground Clearance
200 mm
Curb Weight
27,000 kg
Maximum Speed
33 km/h
Cab Lift
700 mm
Aircraft Range
A318/319/320/321, A300/310, A330, A340-200/300, B737, B757, B767, B777-200,
B787-8/-9, ERJ145/E170/E190, F50/F100, MD-80/90/11, DC-10, C919
