TK-QY120C
Small Aircraft
Tractor

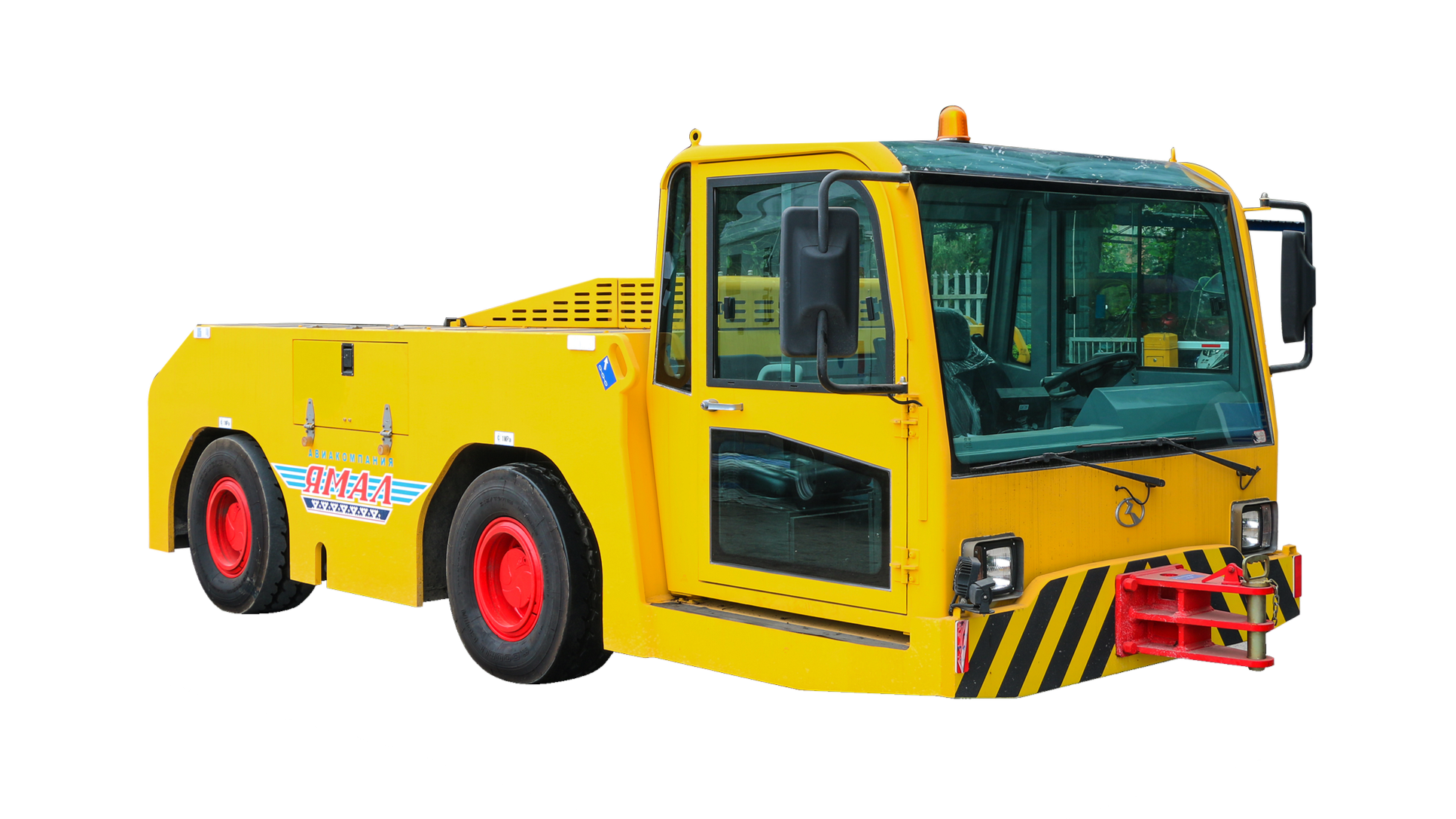

The TK-QY120C is a 160-ton-class diesel aircraft tractor designed for stability, agility, and all-weather reliability, featuring a low center of gravity and a compact, maneuverable chassis.
Automotive-grade electronic control system
Independent multi-system cooling
High-strength welded chassis
Enhanced all-around visibility
Three steering modes: front-wheel, four-wheel, crab steering
Compact and maneuverable
Specifications
Drawbar Pull
120 kN
Wheelbase
2150 mm
Towable Mass
160 tons
Engine Power
82 kW / 110 kW (Optional)
Dimensions (L × W × H)
5770 × 2100 × 1900 mm
Ground Clearance
210 mm
Curb Weight
15,000 kg
Maximum Speed
28 km/h
Tire Model
315/70R15
Aircraft Range
A318/319/320/321, A300/310, B737, ERJ145/E170/E190,
F50/F100, CRJ-900, MD-80/90, C919
