Rapid Response Equipment & Communication Vehicle

Equipment Storage & Securing System
Carbon steel frame with aluminum partitions, sliding rails, and fixing straps enables stable, organized, and rapid transport of rescue equipment.

5G Real-Time Video Transmission System
Equipped with Huaping AVC HDS1400-I 5G terminal, roof-mounted PTZ camera, and Hikvision DVR (2TB) for real-time video transmission to command centers.

Vehicle & Satellite Communication System
Includes ZTE PM790 vehicle radio and Huawei satellite phone, enabling dual-channel communication and reliable command connectivity in remote areas.

Onboard Power Supply System
Integrated SENCI SC2500I generator, 1300W portable power station with 80W solar panel, and inverter system provide flexible and continuous power supply.

Monitoring & Positioning System
Dima customized 360° panoramic monitoring system with onboard storage, combined with Beidou positioning for full-view awareness and navigation.

Power Management System
Maintenance-free battery system with isolator and automatic charging device ensures stable and efficient power distribution.

Onboard Lighting System
LED site lighting provides effective illumination for night operations and low-visibility environments.

High-Mobility 4×4 Chassis
Dongfeng MS600 full-time 4WD chassis delivers strong power, reliability, and off-road capability.

Enhanced Off-Road Performance
340 mm ground clearance, 33° approach angle, 26° departure angle, ≥60% gradeability, and 850 mm wading depth enable operation in extreme terrain.

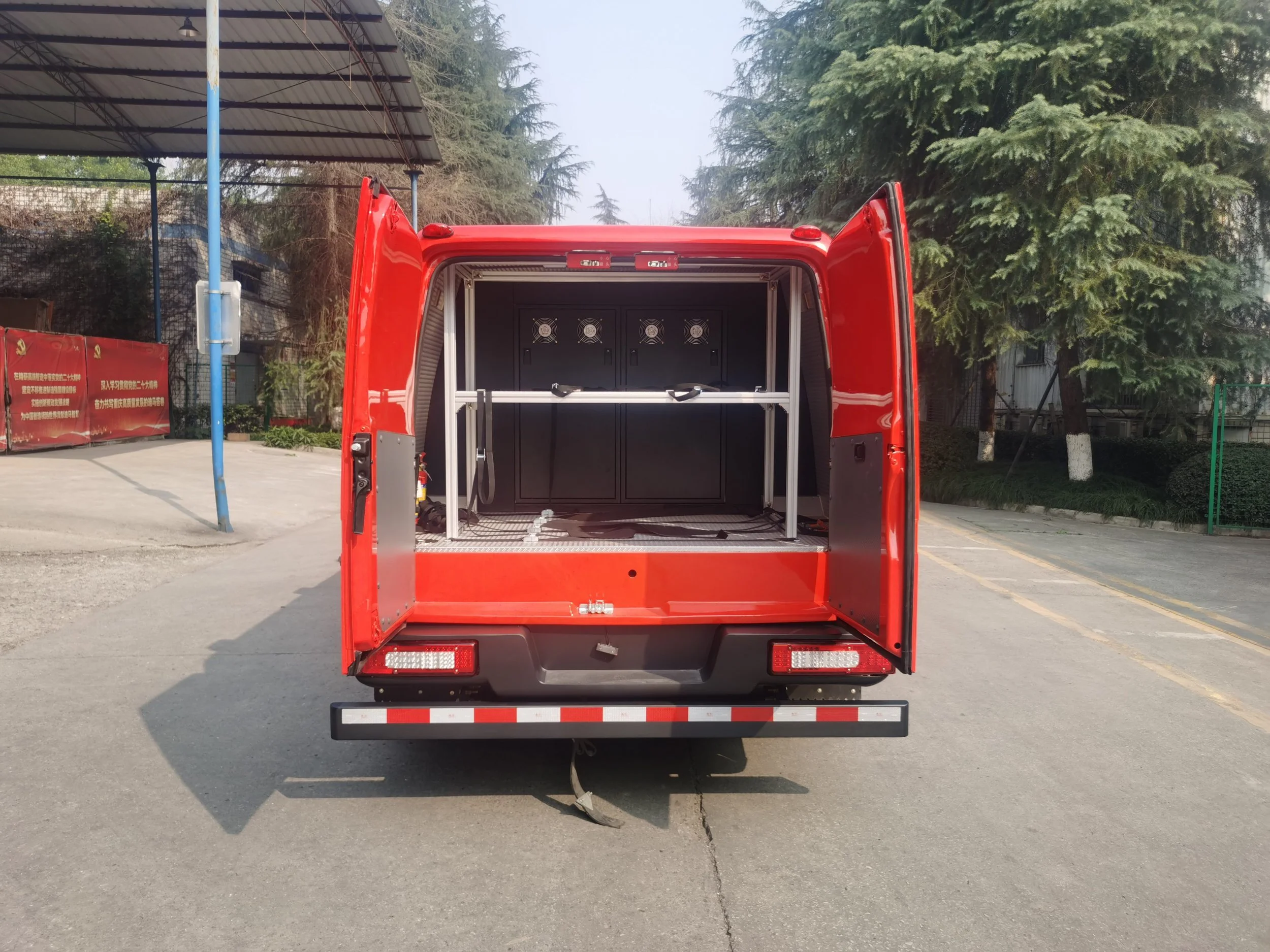

Sealed Equipment Compartment Design
Waterproof metal rear compartment with multiple flip-up doors ensures quick access and protection of equipment.

Fire Industry Standard Compliance
Designed in accordance with GB7956.1-2014 fire truck technical standards for safe and compliant operation.

Emergency Rapid Response
Deployed as a first-response vehicle in urban or rural incidents, enabling rapid arrival, initial equipment deployment, and on-site coordination before larger units arrive.

Complex Terrain & Last-Mile Access
Operates in off-road environments such as mountains, flooded areas, or disaster zones where larger vehicles cannot reach, ensuring delivery of equipment to the frontline.

Emergency Communication Deployment
Provides on-site communication support in remote or infrastructure-damaged areas, using 5G transmission and satellite systems to connect with command centers.

This vehicle is available on NAVECO chassis platforms and can be configured with optional drone systems for aerial surveillance and real-time monitoring. Contact us to discuss configuration options and specifications for your application.
