Pickup Command & Communication Vehicle

Image Capture & Transmission System
Equipped with a roof-mounted PTZ camera and in-vehicle 4K camera, the system supports real-time collection, storage, and transmission of video and image information through satellite and 5G communication links.

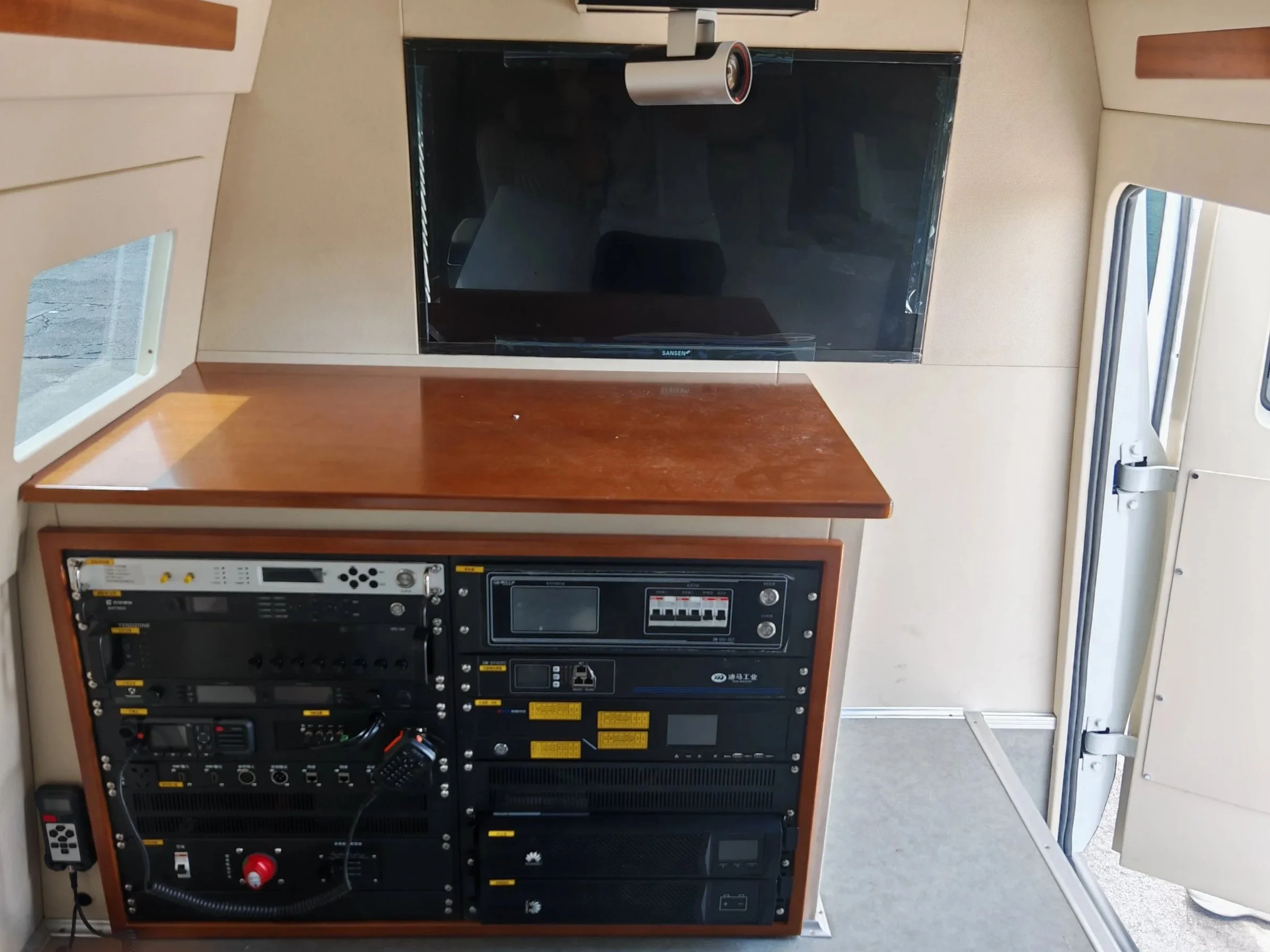

Information Processing System
Powered by an industrial computer platform with i7 processor, 16 GB memory, and 2 TB storage, the system supports field data collection, analysis, information processing, and decision support during emergency operations.

Audio & Video Control System
An integrated audio and video control platform, operated through the onboard host and wireless touch tablet, manages cameras, lighting, signal switching, and related multimedia equipment.

Video Conference System
Equipped with a video conference terminal and onboard display system, the vehicle supports two-way HD conferencing for remote consultation and command coordination.

Network Access & Data Exchange System
Supports multiple communication methods including 4G/5G aggregation, satellite communication, and wired private network access for voice, video, and data exchange with command centers.

Independent Power Supply System
Equipped with a PTO generator, 3K UPS, 2 × 100 Ah batteries, and inverter, the system provides stable and uninterrupted power for onboard communication and command equipment.

On-site CommunicationSystem
Integrating 350M trunking and broadband ad hoc network communication, the system supports on-site voice, video, and data connectivity with coverage of up to 10 km.

Remote Communication System
The vehicle supports communication on the move through satellite links together with Tiantong and Beidou systems, enabling long-distance communication and remote command support.

Easy Operation
The vehicle adopts wireless centralized control, ergonomic equipment layout, and reserved maintenance space to support convenient operation, quick access, and easier daily servicing.

High Safety
The system incorporates balanced vehicle weight distribution, protection against lightning, overcurrent, and leakage, as well as electromagnetic shielding to support safe and reliable operation.

Expandability & Compatibility
Reserved power and network interfaces support future system upgrades, while compatibility with public security private network systems improves long-term flexibility and integration capability.

Integrated Command Functions
The vehicle integrates communication, conferencing, command, monitoring, power supply, and lighting functions into one compact mobile platform for frontline emergency support.

Shock Resistance
Key equipment such as cabinets, antennas, and cameras are equipped with dedicated vibration and shock protection measures to support reliable operation on rough roads and in harsh field environments.

Ergonomic Interior Layout
The working cabin adopts a clear and practical layout with flame-retardant interior materials and rotating seats, improving comfort, usability, and coordination during on-site operations.

High Mobility & Off-Road Capability
Built on the Dongfeng Mengshi M20 4×4 chassis, with 340 mm ground clearance and 850 mm wading depth, the vehicle offers strong off-road mobility for rapid approach to difficult incident scenes.

Wildfire Forward Command
The vehicle can reach fireline staging areas through rugged terrain and establish communication links for frontline coordination, video transmission, and command support.

Post-Earthquake First Assessment
After an earthquake, the vehicle can quickly approach damaged villages or blocked access areas, establish communication links, and transmit live video and field information to higher-level command centers.

Flood Zone Emergency Communication
During flooding or network disruption, the vehicle can enter affected areas and restore temporary communication capability to support evacuation coordination and emergency dispatch.

Rural Patrol and Remote Area Support
In remote villages or areas with weak network coverage, the vehicle can extend voice and data communication capability for patrol, reporting, and command coordination.

Remote Relay and Temporary Command Support
The vehicle can be deployed in communication blind zones such as tunnels, border areas, or isolated field locations to provide temporary communication relay and on-site command support.

This vehicle is available on DONGFENG, IVECO, FORD and ISUZU chassis platforms and can be configured with optional drone systems for aerial surveillance and real-time monitoring. Contact us to discuss configuration options and specifications for your application.
