K9 Transport Vehicle

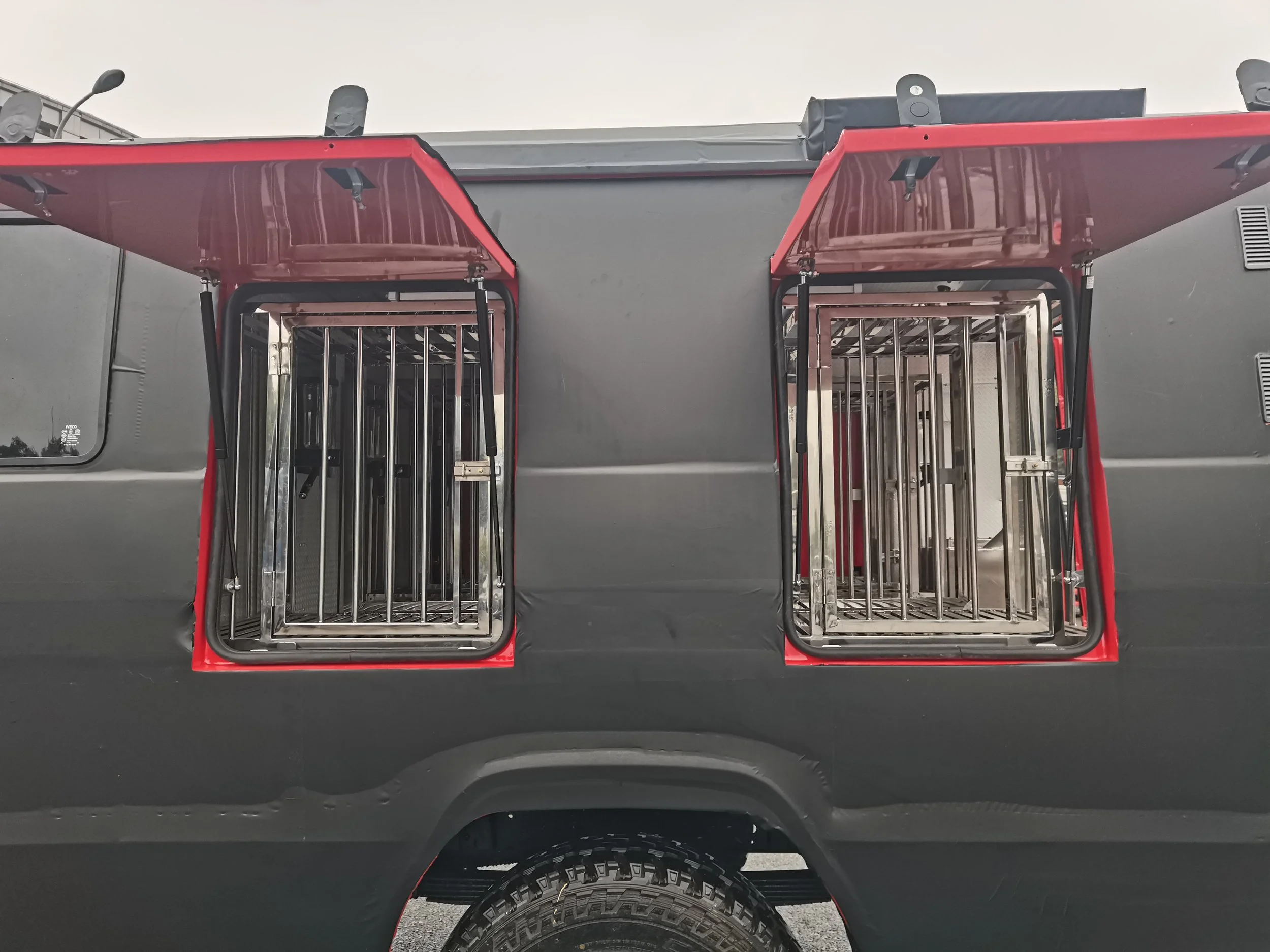

K9 Kennel System
Includes four individual stainless-steel kennels constructed from SUS304 stainless steel with dual-access sliding doors, removable stainless steel waste tray, and a self-priming drinking fountain.

Independent Ventilation & Climate System
The dog compartment is equipped with a dedicated independent air conditioning system and roof-mounted ventilation fan with waterproof cover to maintain airflow, temperature control, and complete air separation from the crew area during transport.

Monitoring & Positioning System
Equipped with onboard cameras, DVR, and positioning functions, the system supports real-time video observation, route tracking, equipment status monitoring, and remote vehicle management during operations.

Integrated Safety & Vision System
Equipped with a 360° panoramic imaging system with four wide-angle HD cameras, a 9-inch display, and 128 GB storage to improve driving visibility and operational safety. The vehicle also includes a roof-mounted LED warning light with 200 W siren, six strobe/work lights, and a rear spare tire mount.

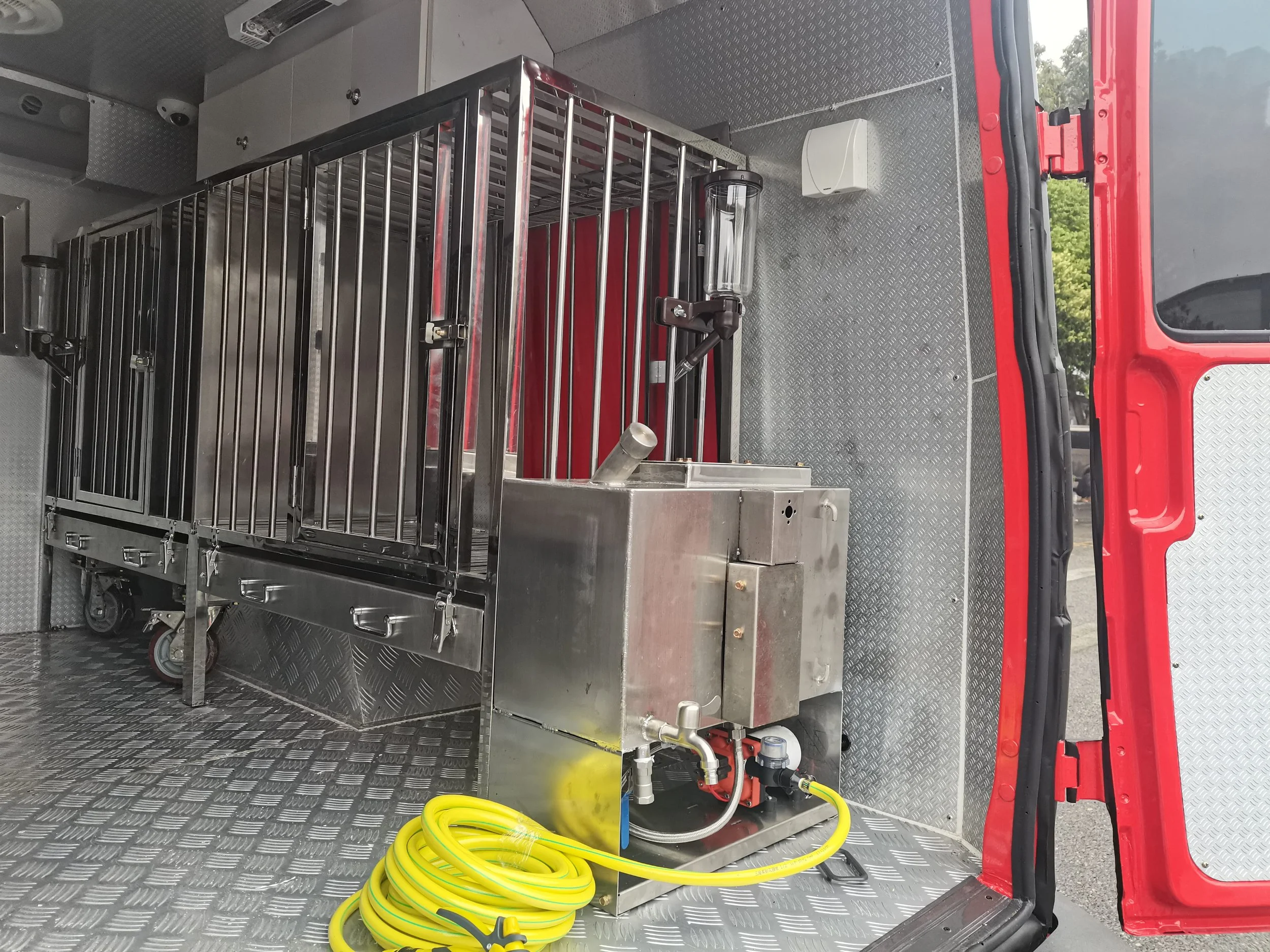

Internal Environment & Utility System
The dog compartment uses anodized patterned aluminum flooring and wall panels for durability, slip resistance, and easy cleaning, and includes a stainless-steel floor drain for washdown. The crew area retains six seats, while onboard utility equipment includes a 35 L clean water tank with level gauge and faucet, a diaphragm pump, and storage cabinets.

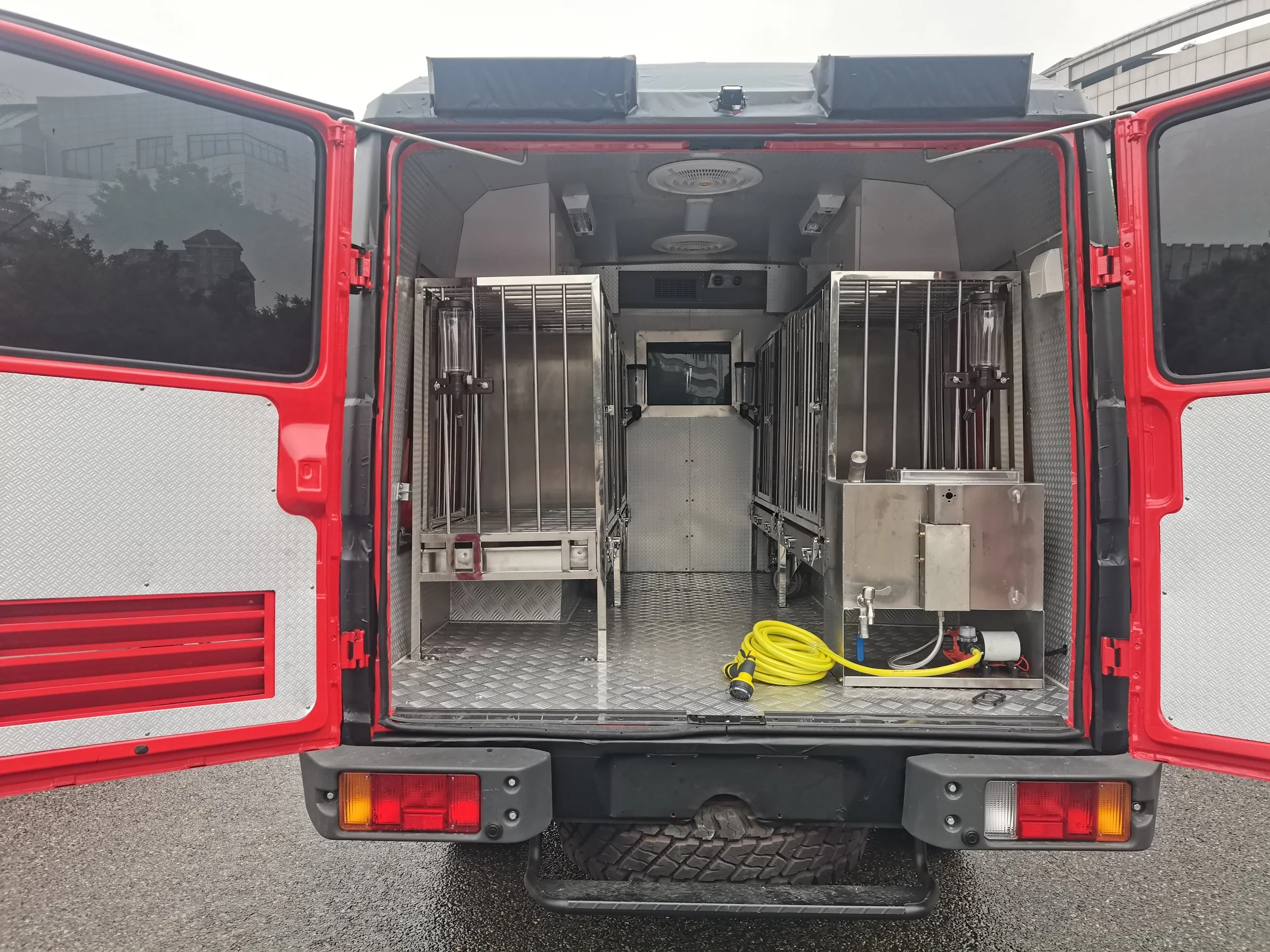

Separated Crew and Dog Layout
Interior space divided into independent front crew area and rear dog area by a steel partition wall with an observation window, ensuring odor isolation and allowing personnel to monitor dogs without direct contact.

Off-Road Mobility
Built on a 4×4 chassis, the vehicle is designed to safely drive across rough terrain including unpaved roads, gravel, mud, and snow, making it suitable for demanding field and emergency operations.

Hygienic Kennel Design
Kennels feature a lightweight, rapidly disassemblable structure with stainless steel materials and movable excrement trays, allowing for efficient cleaning, decontamination, and maintenance between operations.

Self-Contained & Independent Operation
Equipped with onboard water supply, independent power distribution, and self-sufficient climate control for the dog compartment, enabling full operational capability without reliance on external infrastructure.

Robust & Durable Construction
Built for demanding environments, the vehicle features anti-corrosion treatment, durable structural construction, and reliable manufacturing quality, supporting long-term operation in harsh outdoor conditions with service life designed to exceed 15 years.

Search and Rescue Deployment
Designed for the rapid transport of handlers and working dogs to disaster sites and emergency areas, with 4×4 capability that allows access to rough roads and damaged terrain so teams can begin operations quickly upon arrival.

Long-Distance K9 Transport
Suitable for moving working dogs safely over longer distances, the vehicle provides a dedicated rear dog compartment with ventilation and onboard monitoring to support comfort and supervision throughout the journey.

Security & Patrol Support
Suitable for police, security, and other specialized teams that need reliable transport of trained dogs and handlers for patrol duties, search tasks, event security, and response operations.

This vehicle is available on SITRAK , HOWO, Dongfeng, IVECO, SAIC,  VOLVO and FOTON chassis platforms and can be configured with optional drone systems for aerial surveillance and real-time monitoring. Contact us to discuss configuration options and specifications for your application.
