High-Flow Emergency Drainage Vehicle

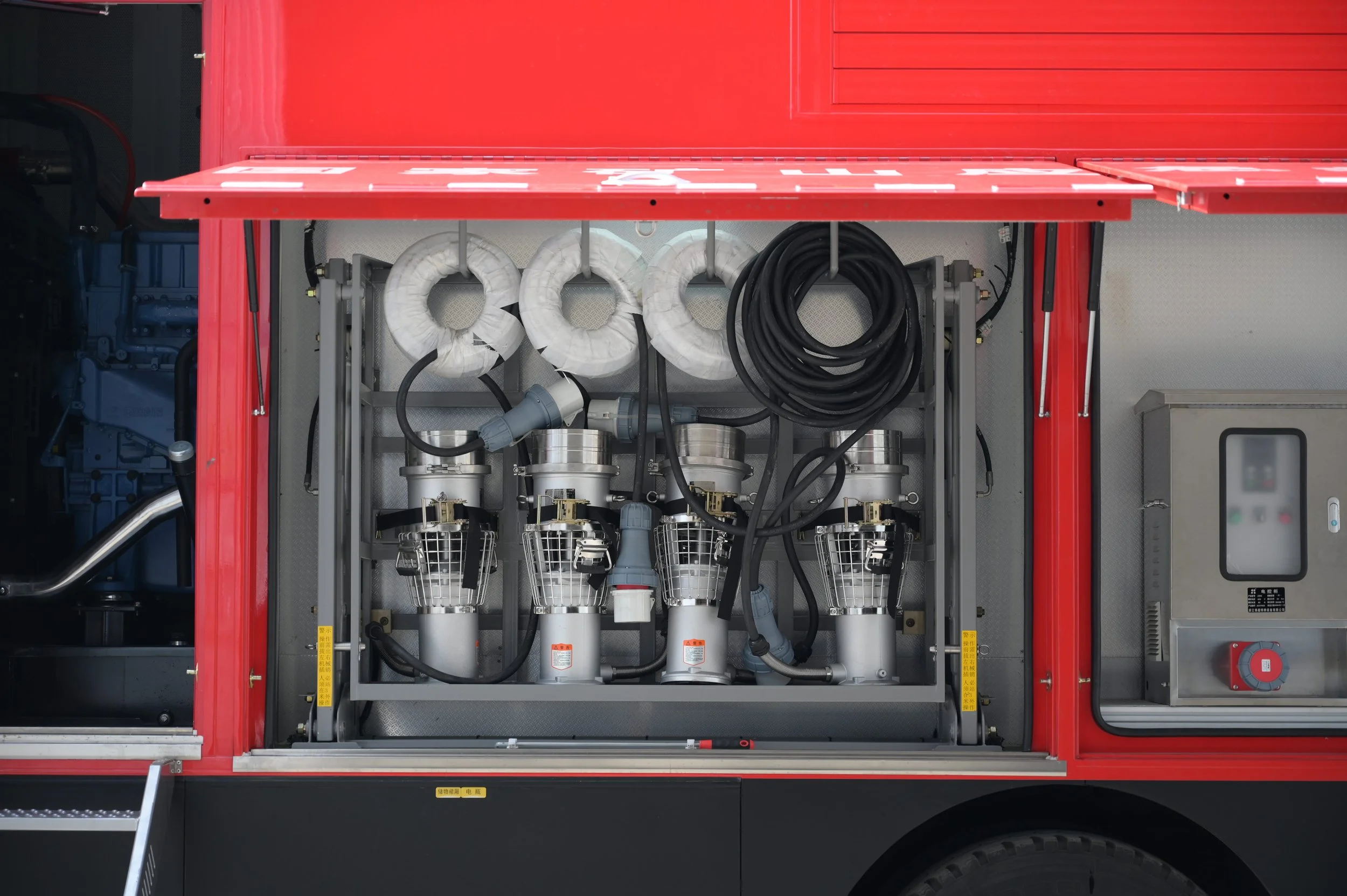

High-Flow Drainage

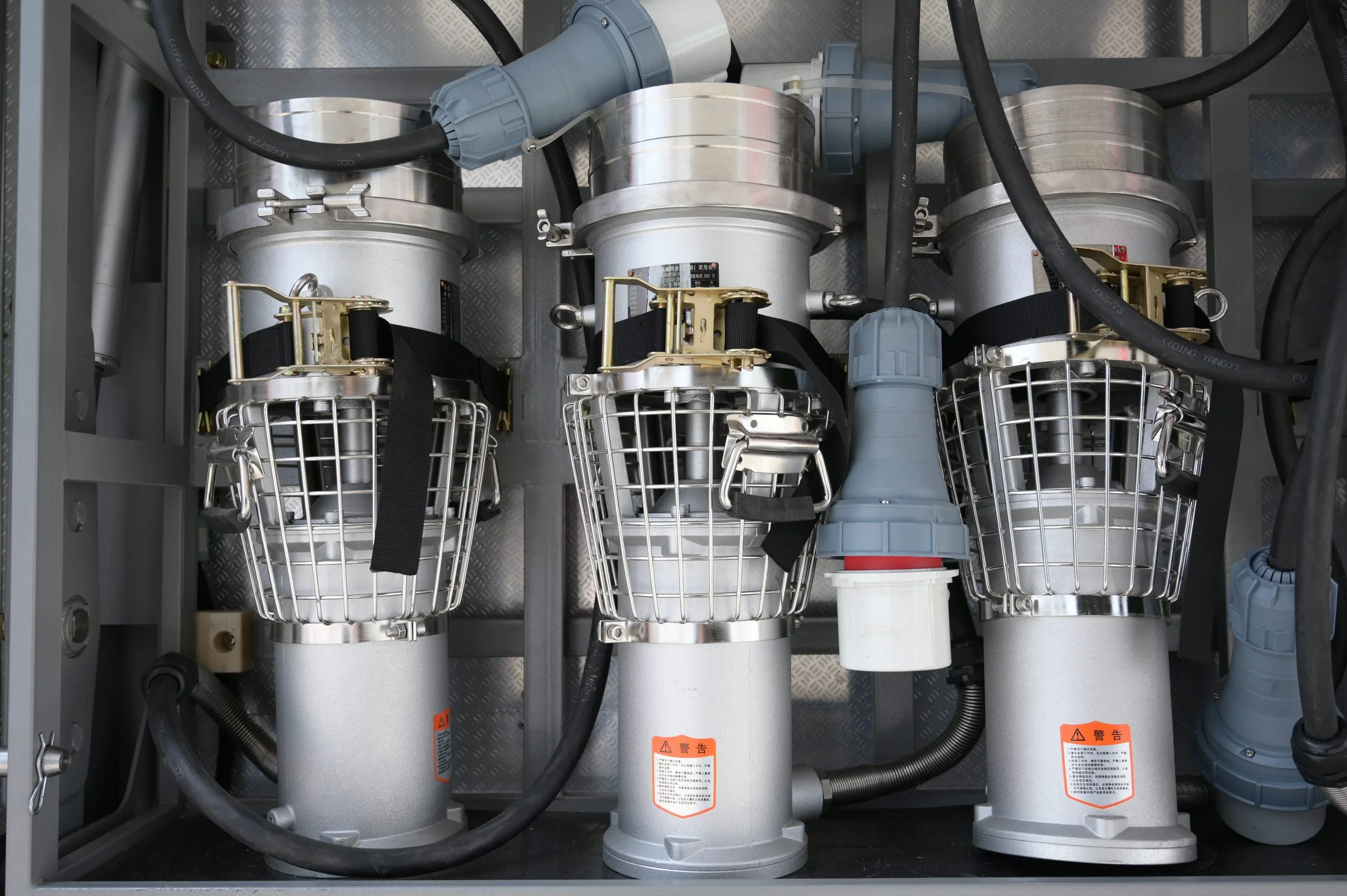

8 submersible pumps, it delivers up to 4800m³/h drainage at 10m head, or 1200m³/h at 39m high head, with DN200 quick-connect hoses.

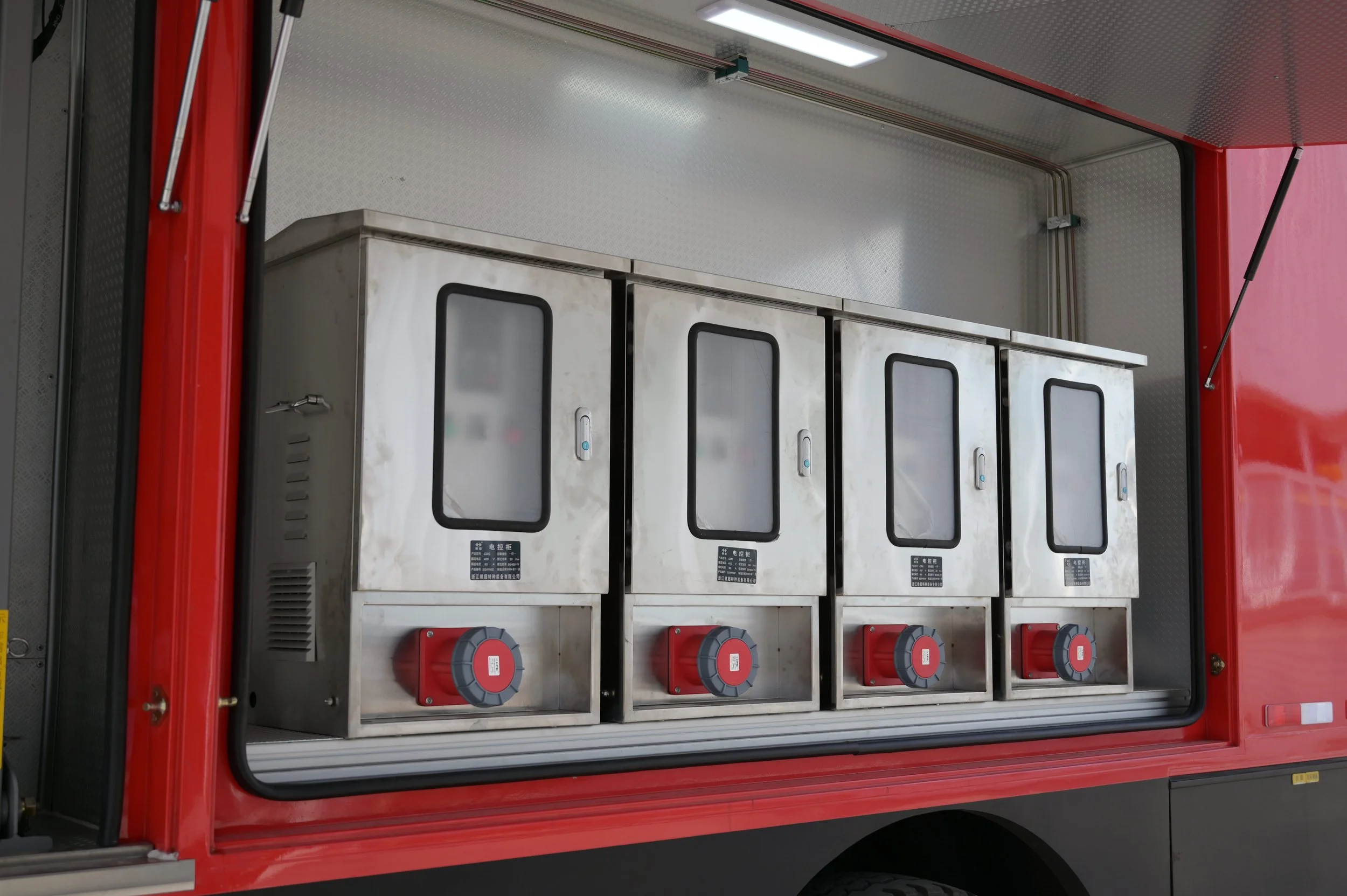

Integrated Power Supply
A 300kW generator provides stable power supply, supporting continuous operation for more than 8 hours.

Intelligent Condition Monitoring
The control system displays real-time data of speed, flow, pressure, voltage and temperature, with automatic safety protection.

Beidou Positioning & Communication
Onboard terminal supports Beidou navigation and short-message communication, accessing emergency command systems.

Auxiliary Lighting
Foldable LED lighting and warning lamps ensure visibility for night and low-light rescue.

Automatic Smoke Exhaust & Heat Insulation
Equipped with an automatically controlled chimney, which opens during power generation and closes when stopped, with fireproof and heat-insulating functions.

Low Noise Operation
Full-load noise is below 85dB at 1 meter outside the compartment, with sound insulation treatment.

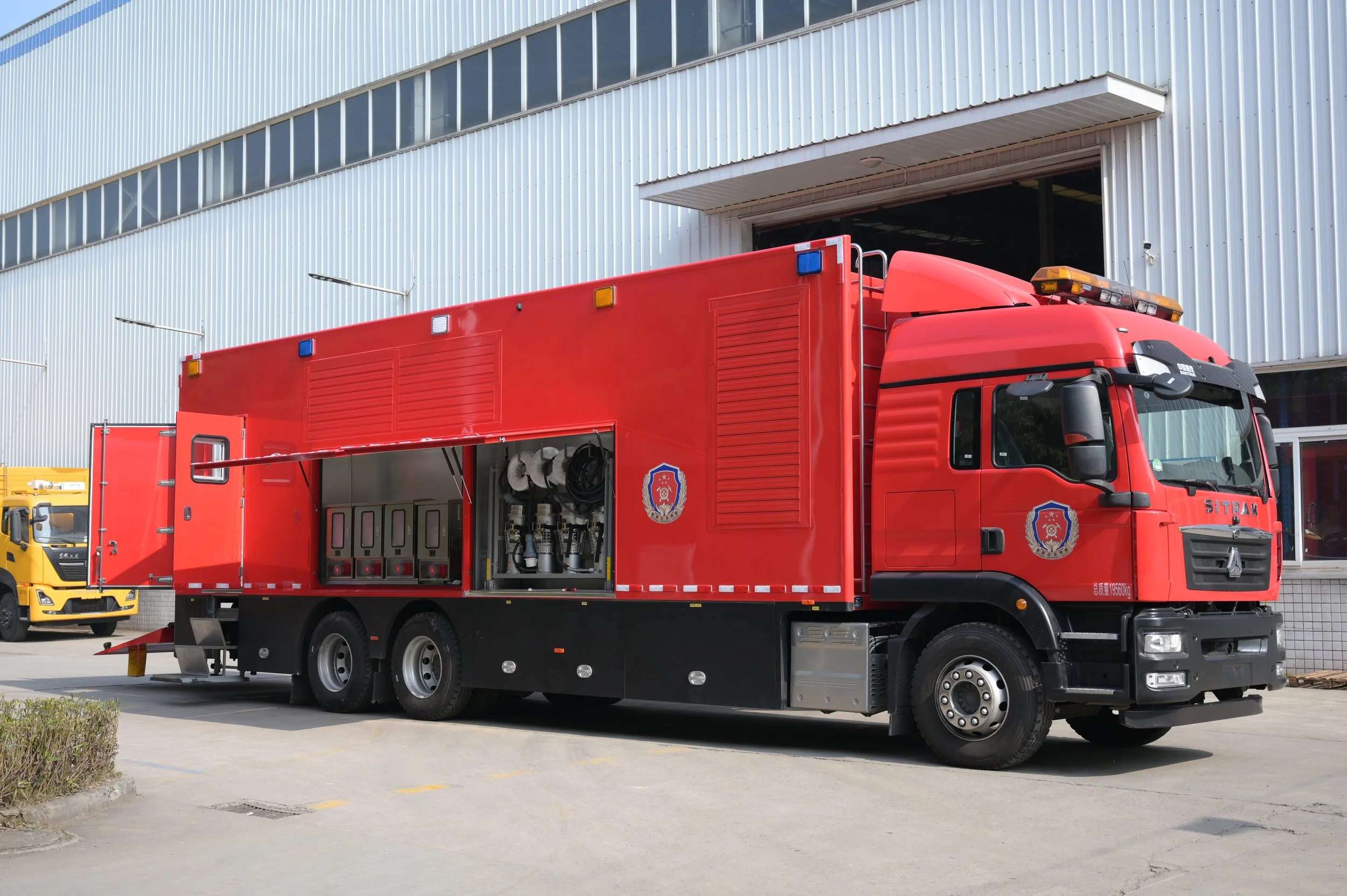

Heavy-Duty & Durable Structure
High-strength integrated compartment with anti-seismic and anti-torsion performance, based on 6×4 heavy-duty chassis.

High-Strength Integrated Compartment
The compartment adopts an integrated structure with shock resistance, torsion resistance, and tensile resistance, suitable for driving on complex roads.

Urban Drainage
Designed for city streets, underground passages, residential areas, and commercial districts during heavy rain or drainage failures. Quickly removes water to restore traffic and safety.

Suburban Drainage
Used in villages, rural roads, farmlands, and new districts with poor drainage. Operates independently in areas with limited power to clear waterlogging and protect land and infrastructure.

Public Works Drainage
Suitable for municipal engineering and public utility operations, such as sewer maintenance, pipe repair, underground facility construction, and water removal from tunnels or foundations.

Post-Disaster Rescue
After natural disasters such as floods, typhoons, or severe storms, large volumes of water often remain in affected areas including buildings, roads, industrial zones, and public facilities.

This vehicle is available on SITRAK and HONGYAN heavy-duty chassis platforms and can be configured according to project requirements. Contact us to discuss chassis options and specifications for your application.
