TK-WS30

Aircraft Wastewater Truck

Icon of a fuel pump nozzle with a drop of fuel.

The TK-WS30 is a lavatory service truck with vacuum waste removal, clean-water supply, stainless-steel tanks, and a 380–2900 mm lifting platform for efficient aircraft servicing.

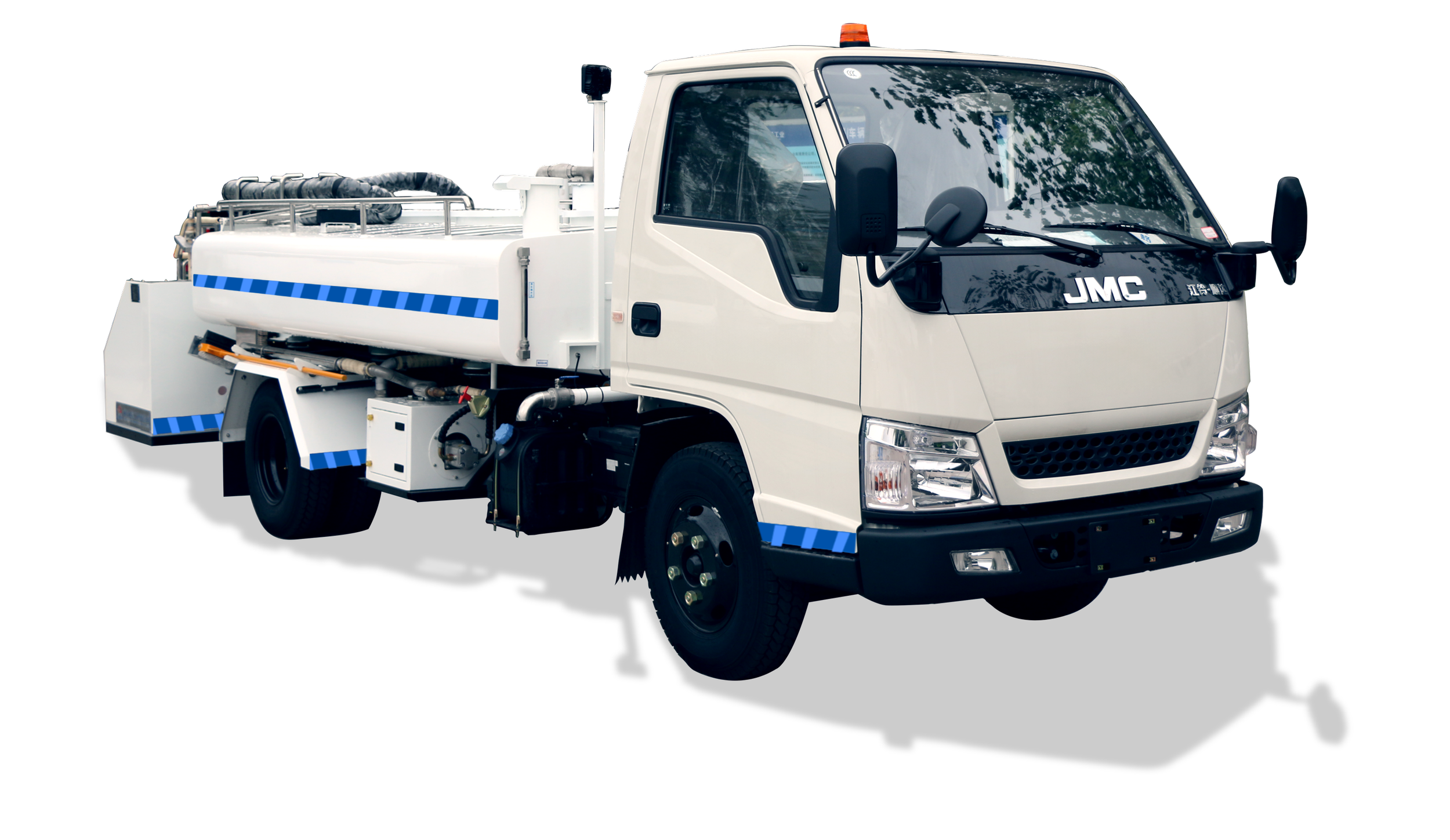

White utility truck with blue striping, labeled JMC, used for water or liquid transport, with tanks and equipment on the back, isolated on a black background.

  • Vacuum extraction system

  • Standard lifting platform

  • Independent reinforced subframe

  • High-quality stainless-steel construction

Contact Us

Specifications

Water Supply Pressure
0.25 – 0.35 MPa
Wastewater Capacity
2000 L
Suction Vacuum
0.2 bar
Fresh Water Capacity
1000 L
Dimensions (L × W × H)
6880 × 2100 × 2150 mm
Wheelbase
3360 mm
Lift Height (Optional)
380 – 2900 mm
Curb Weight
3700 kg
Turning Diameter
15000 mm
Aircraft Range
A318/319/320/321, A300/310, A330/340, A350, B737, B747, B757, B767, B777, B787, ERJ145/E170/E190, F50/F100, CRJ-900, MD-80/90/11, DC-10, C919
